Product Details

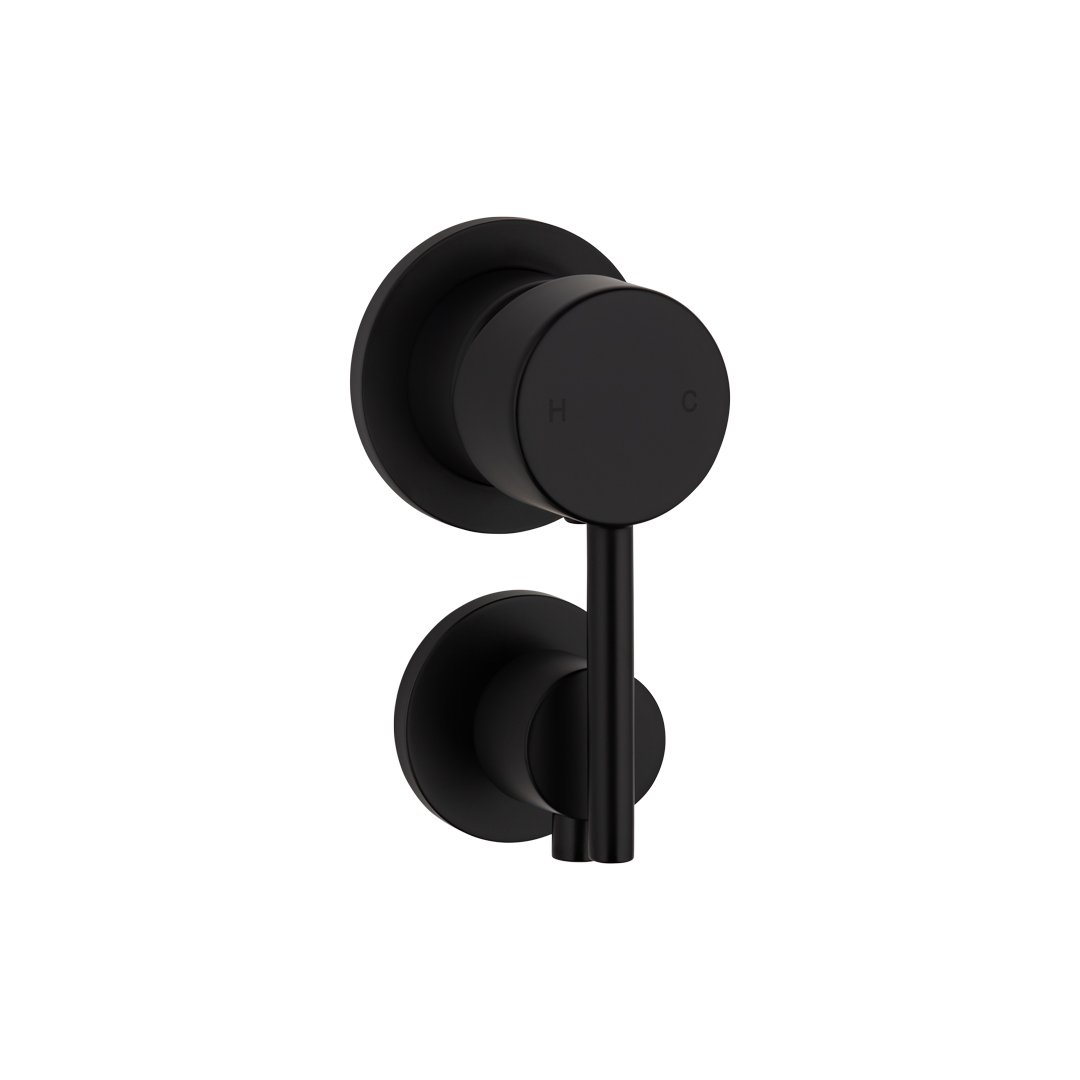

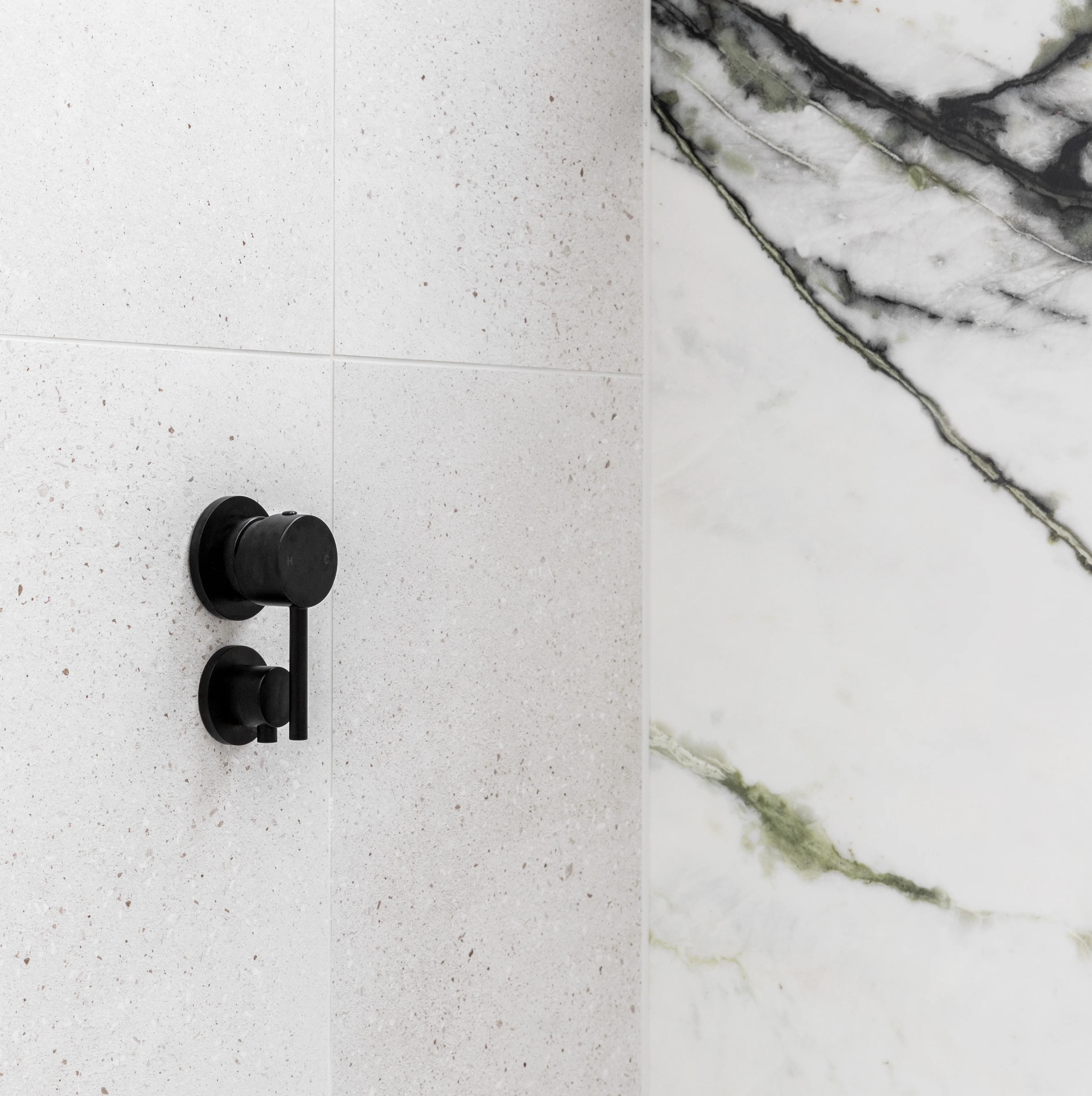

The Elysian Shower Bottom Diverter allows you to easily switch between rain head and hand held function or between bath spout and rain shower, by a simple rotation of the knob.
Pull on the mixer handle to adjust pressure control and twist left and right for temperature control. Functionality at its finest.
Features:
– AEA (Advanced Electroplating Application)
– Pressure control
– Temperature control

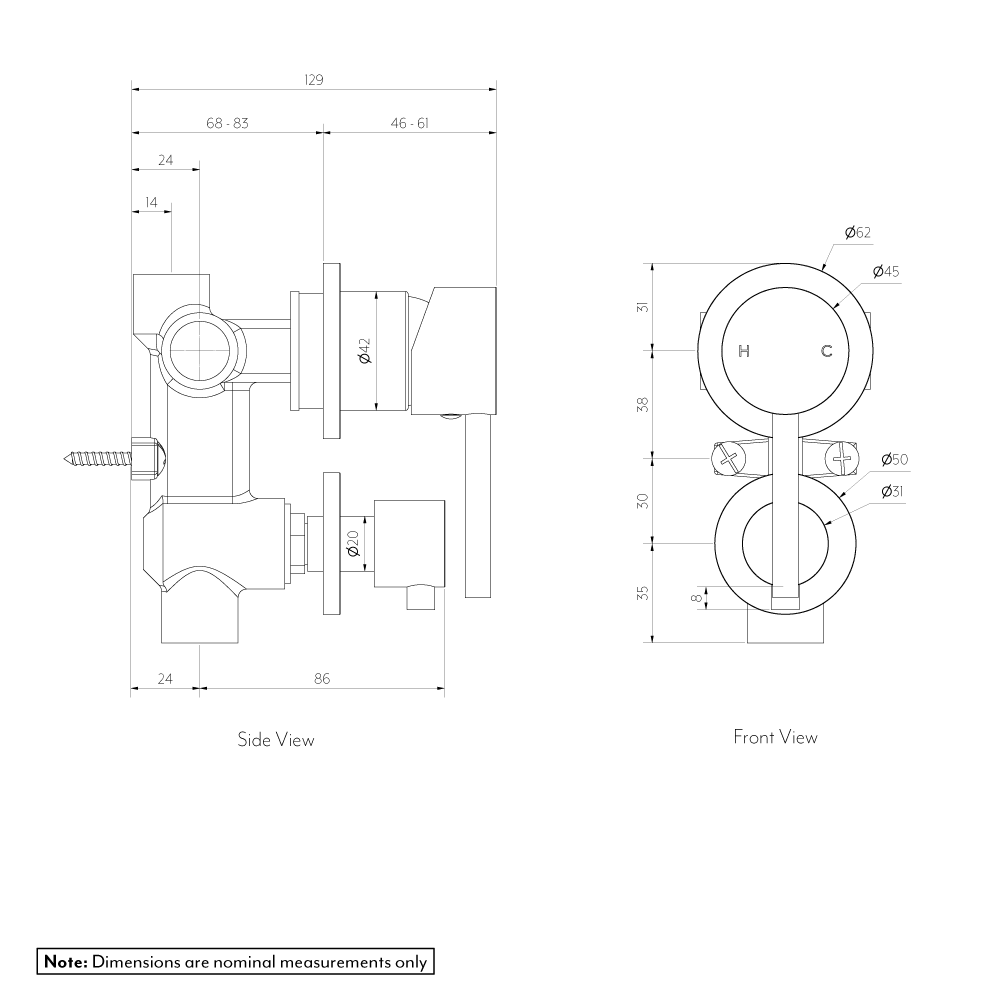

Dimensions:
– Backplate Diameter: 62mm & 50mm
– Handle Length: 86mm
Please Note:
– This wall shower diverter is not thermostatic. Your plumber may be able to install a Thermostatic Mixing Valve (TMV) to enable this functionality. The TMV is installed after the hot supply, providing you with a blended hot temperature that will help prevent scalding if there is a sudden drop in cold supply to the mixer. Installing a TMV is a common installation method in the UK.
Please head to the ‘Downloads’ tab and under ‘Product Documents’ refer to our TMV Placement document for more information and placement examples.
Shop Other Colour Options
Shop Other Colour Options
Product Info
Matte Black
At ABI, we use the highest quality materials and colouring processes to ensure a durable and timeless finish that you will love for years to come. Like many other materials, the colour may appear differently from product to product due to lighting within the installation location and reflection on products with different surfaces (flat and curved).
While we do our best to ensure consistency between batches and use strict colour toning and matching quality procedures to lessen variations, we acknowledge that there may be minor variations between batches. We encourage you to check over your items once received to ensure that you are satisfied with the finish. Should you receive anything of concern, our team is here to help!
| SKU | 13359 |
| Weight | 1.5kg |
| Brand | ABI Interiors |
| Material | Solid Brass |
| Finish / Coating | Matte Black – Advanced electroplating application (AEA) |
| Dimensions (mm) | Backplate Diameter 62 & 50 |
| Function | Turn Button |
| WRAS | WRAS Approval 1812125 |
| What's In The Box | In-Wall Kit (required for rough-in): 1 x Shower Bottom Diverter Body 2 x Fixing Screw 1 x Diverter Cartridge 1 x Mixer Cartridge 1 x Locking Nut Handle Kit (required for fit-off): 1 x Short (15mm) Sleeve 1 x Long (30mm) Sleeve 1 x Dome 1 x Backplate 1 x Handle 1 x Grub Screw 1 x Grub Screw Cap 1 x Allen Key Diverter Kit (required for fit-off): 1 x Diverter Sleeve 1 x Diverter Backplate 1 x Diverter Button 1 x Diverter Stick |
| Warranty | 25 years structural warranty 7 years cartridge warranty 2 years finish coating warranty |
Specification guides can be found under the Downloads tab.
| PRODUCT DESCRIPTION | RESIDENTIAL WARRANTY | NON-RESIDENTIAL WARRANTY | OUTDOOR WARRANTY | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Name & Finish | SKU | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other |
| (D)Elysian Shower Bottom Diverter - Matte Black | 13359 | 25 | 2 | 7 | 2 | 10 | 1 | 5 | 1 | - | - | - | - |
Product Documents

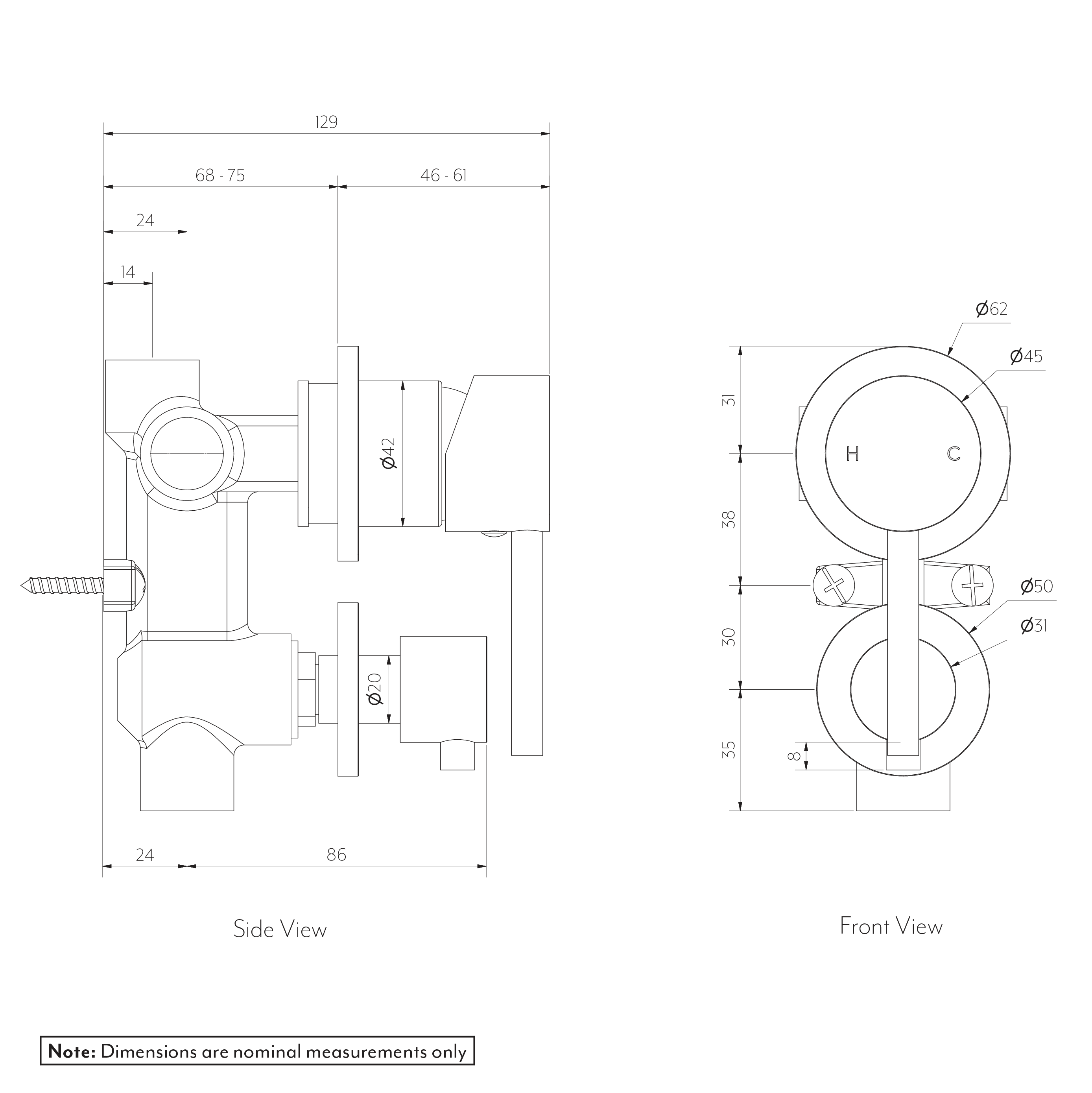

| Elysian Shower Bottom Diverter - Specification |  |
| TMV Placement | |
Bim Files
| View Library | |
Product FAQs
What type of coating is used on this product, is it durable?
Advanced electroplating application (AEA) - This is an extremely durable coating, far superior to a powdercoated coating.
Can this product be used externally / outside?
ABI's warranty does not cover external use due to the coatings being put under much harsher conditions and UV light. However the structural integirty of the tap would be fine.
