Product Details

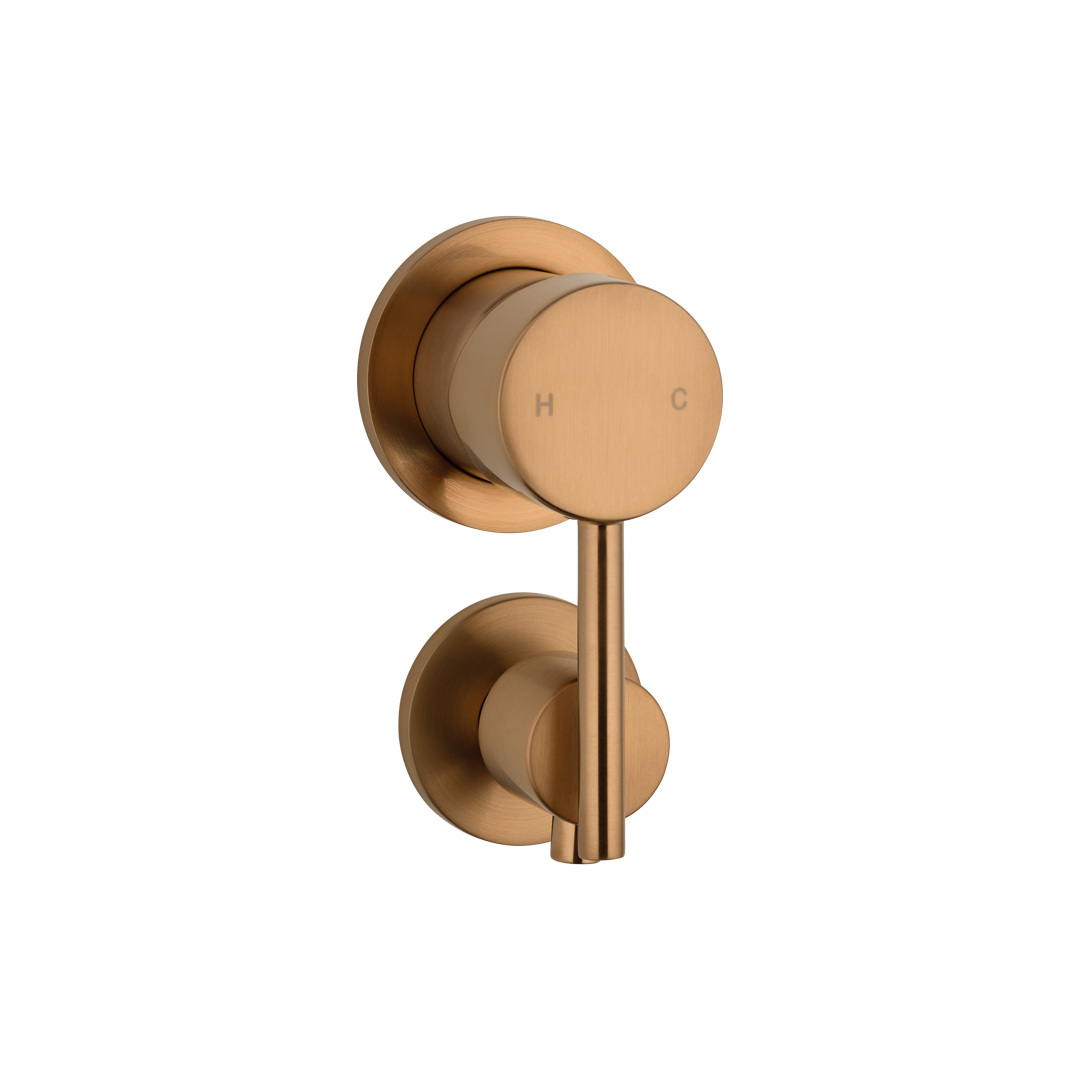

The Elysian Shower Bottom Diverter allows you to easily switch between rain head and hand held function or between bath spout and rain shower, by a simple rotation of the knob.
Pull on the mixer handle to adjust pressure control and twist left and right for temperature control. Functionality at its finest.
Features:
– PVD (Physical Vapour Deposition)
– Pressure control
– Temperature control

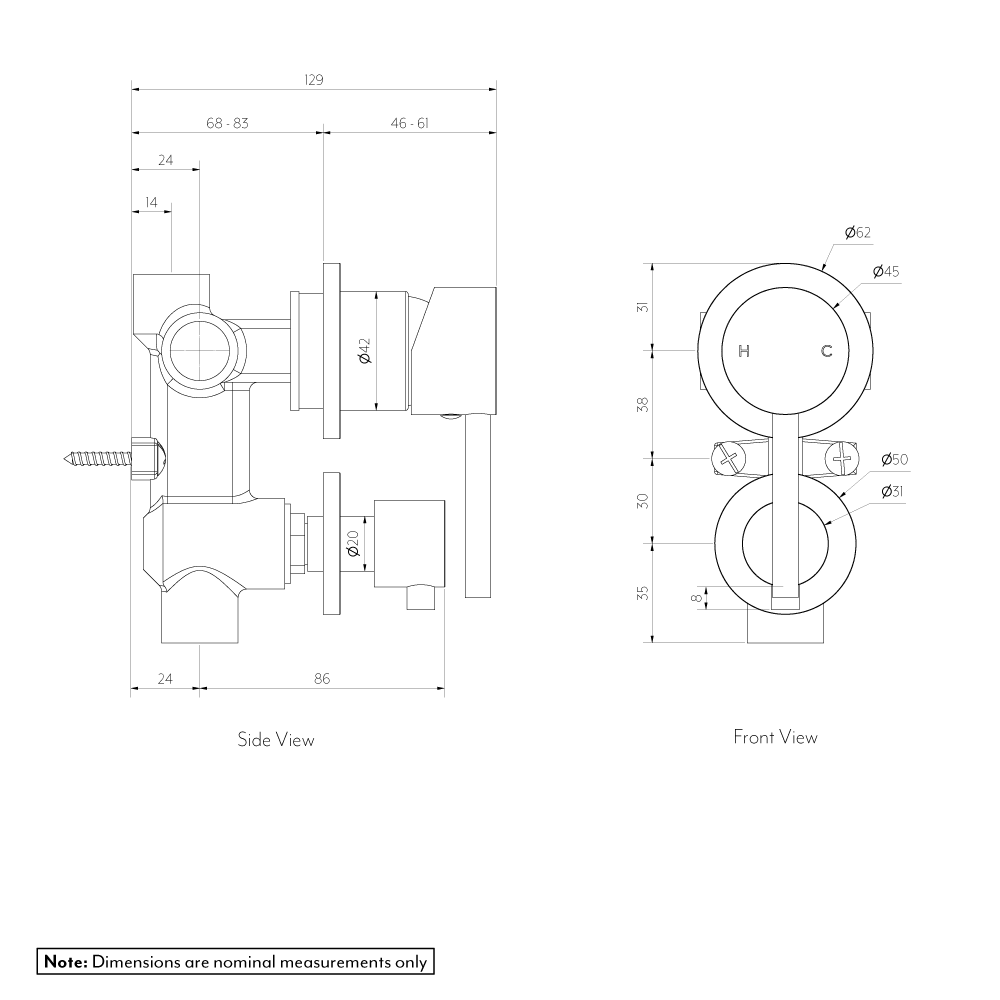

Dimensions:
– Backplate Diameter: 62mm & 50mm
– Handle Length: 86mm
Please Note: This wall shower diverter is not thermostatic. Your plumber may be able to install a Thermostatic Mixing Valve (TMV) to enable this functionality. The TMV is installed after the hot supply, providing you with a blended hot temperature that will help prevent scalding if there is a sudden drop in cold supply to the mixer. Installing a TMV is a common installation method in the UK.
Please head to the ‘Product Document’ tab and refer to our TMV Placement document for more information and placement examples.
If you are looking for a thermostatic alternative, please refer to our Eden Thermostatic Shower Rail Set: here
Product Info
| SKU | 13355 |
| Weight | 1.5kg |
| Brand | ABI Interiors |
| Material | Solid Brass |
| Finish / Coating | (PVD) Brushed Copper - ABI’s Heat Shield – Industrial Grade Electro Colouring System (Physical Vapour Deposition) |
| Dimensions (mm) | Backplate Diameter 62 & 50 |
| Function | Turn Button |
| Warranty | 25 years structural warranty 7 years cartridge warranty 5 years finish coating warranty |
Specification guides can be found under the Downloads tab.
| PRODUCT DESCRIPTION | RESIDENTIAL WARRANTY | NON-RESIDENTIAL WARRANTY | OUTDOOR WARRANTY | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Name & Finish | SKU | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other |
| (D) Elysian Shower Bottom Diverter - Brushed Copper | 13355 | 25 | 5 | 7 | 2 | 10 | 1 | 5 | 1 | - | - | - | - |
Product Documents

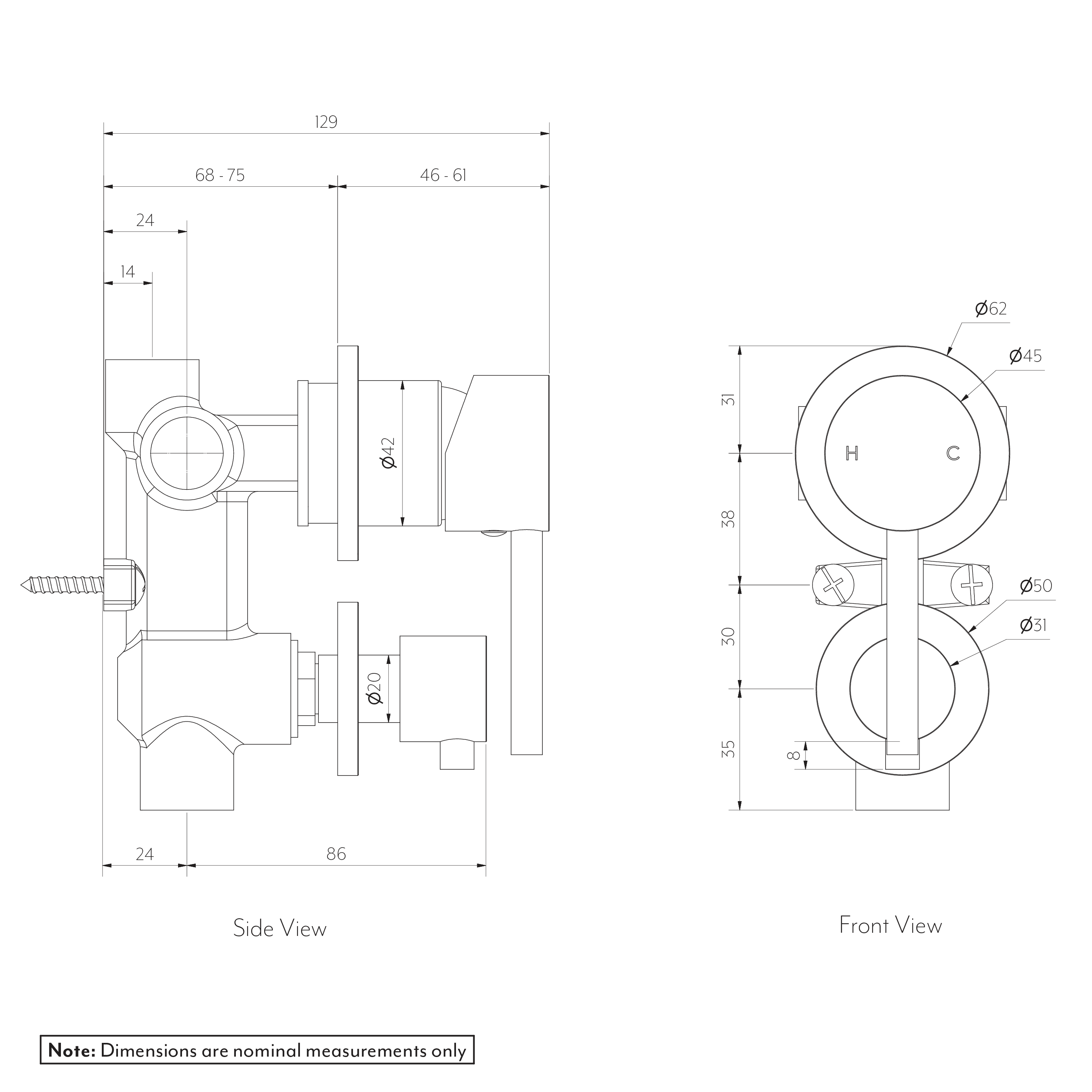

| Elysian Shower Bottom Diverter Specification |  |
| TMV PLACEMENT | |
Bim Files
| View Library |  |
