Elysian Shower Bottom Diverter - White

SKU: 15104

in stock


Elysian Shower Bottom Diverter - White

SKU: 15104

in stock


£166.99
Add to Basket
Also Bought With
Chevron-Down

Product Details

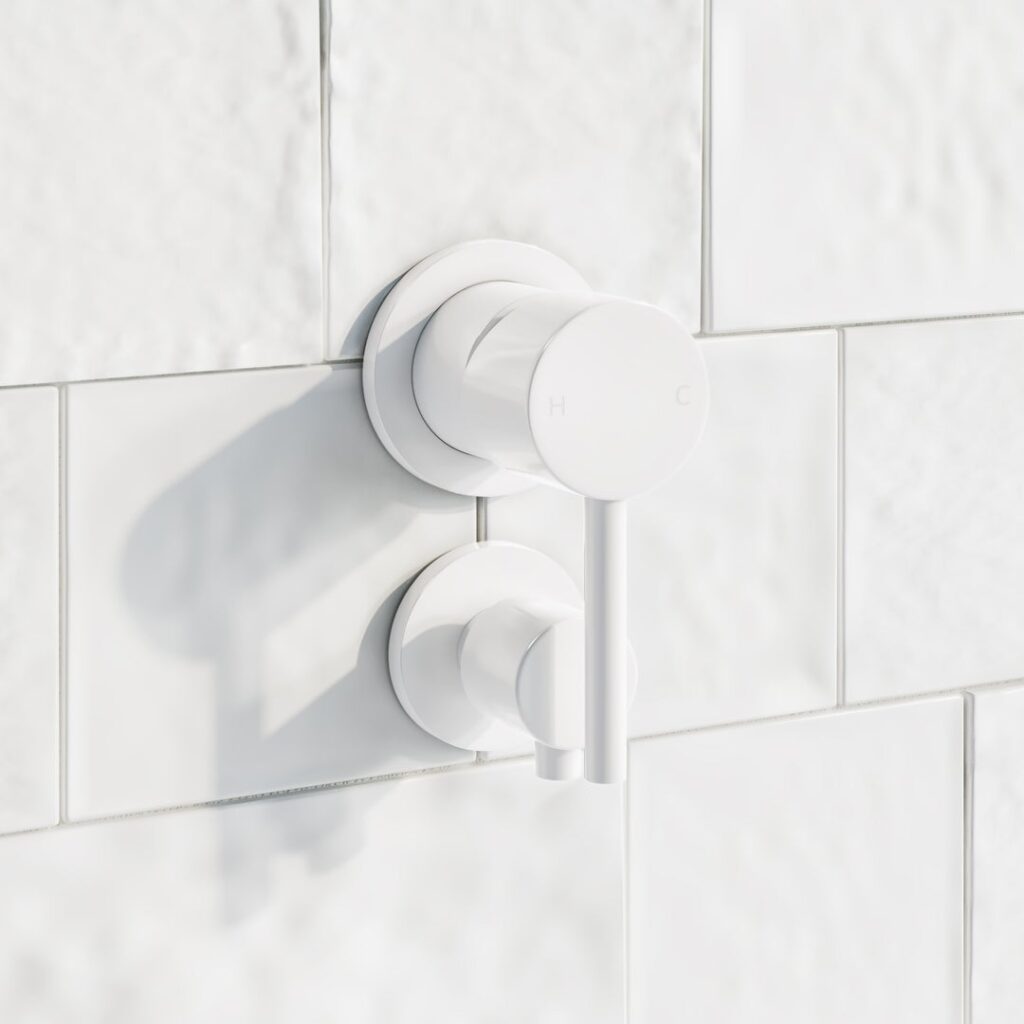

The Elysian Shower Bottom Diverter allows you to easily switch between rain head and hand held function or between bath spout and rain shower, by a simple rotation of the knob.

Pull on the mixer handle to adjust pressure control and twist left and right for temperature control. Functionality at its finest.

Features:

– PSLT (PrimeShield Lacquer Technology)
– Pressure control
– Temperature control

Dimensions:

– Backplate Diameter: 62mm & 50mm
– Handle Length: 86mm

Please Note:

– This wall shower diverter is not thermostatic. Your plumber may be able to install a Thermostatic Mixing Valve (TMV) to enable this functionality. The TMV is installed after the hot supply, providing you with a blended hot temperature that will help prevent scalding if there is a sudden drop in cold supply to the mixer. Installing a TMV is a common installation method in the UK.

Please head to the ‘Downloads’ tab and under ‘Product Documents’ refer to our TMV Placement document for more information and placement examples.

If you are looking for a thermostatic alternative, please refer to our Eden Thermostatic Shower Rail Set: here

Browse our complete range of white tapware.

Product Info

  • Colouring
  • Specifications
  • Warranty
  • Environment
  • Downloads
White

At ABI, we use the highest quality materials and colouring processes to ensure a durable and timeless finish that you will love for years to come. Like many other materials, the colour may appear differently from product to product due to lighting within the installation location and reflection on products with different surfaces (flat and curved).

While we do our best to ensure consistency between batches and use strict colour toning and matching quality procedures to lessen variations, we acknowledge that there may be minor variations between batches. We encourage you to check over your items once received to ensure that you are satisfied with the finish. Should you receive anything of concern, our team is here to help!

SKU 15104
Weight 1.5kg
Brand ABI Interiors
Finish / Coating White - Semi-Gloss PrimeShield Lacquer Technology (PSLT)
Construction Solid Brass
Dimensions (mm) Backplate Diameter: 62mm & 50mm
Handle Length: 86mm
Function Turn Knob
WRAS WRAS Approval 1812125
What's In The Box In-Wall Kit (required for rough-in):
1 x Shower Bottom Diverter Body
2 x Fixing Screw
1 x Diverter Cartridge
1 x Mixer Cartridge
1 x Locking Nut

Handle Kit (required for fit-off):
1 x Short (15mm) Sleeve
1 x Long (30mm) Sleeve
1 x Dome
1 x Backplate
1 x Handle
1 x Grub Screw
1 x Grub Screw Cap
1 x Allen Key

Diverter Kit (required for fit-off):
1 x Diverter Sleeve
1 x Diverter Backplate
1 x Diverter Button
1 x Diverter Stick
Warranty 25 years structural warranty
7 years cartridge warranty
2 years finish/coating warranty

Specification guides can be found under the Downloads tab.

PRODUCT DESCRIPTION RESIDENTIAL WARRANTY NON-RESIDENTIAL WARRANTY OUTDOOR WARRANTY
Name & Finish SKU Structure Finish Cartridge Other Structure Finish Cartridge Other Structure Finish Cartridge Other
Elysian Shower Bottom Diverter - White 15104 - - - - - - - - - - - -
Bim Files
View Product Download
View Collection Download
View Library Download

Product FAQs


What type of coating is used on this product, is it durable?

White - Semi-Gloss PrimeShield Lacquer Technology (PSLT) - This is an extremely durable coating, far superior to a powdercoated coating.


Can this product be used externally / outside?

ABI's warranty does not cover external use due to the coatings being put under much harsher conditions and UV light. However the structural integirty of the tap would be fine.
