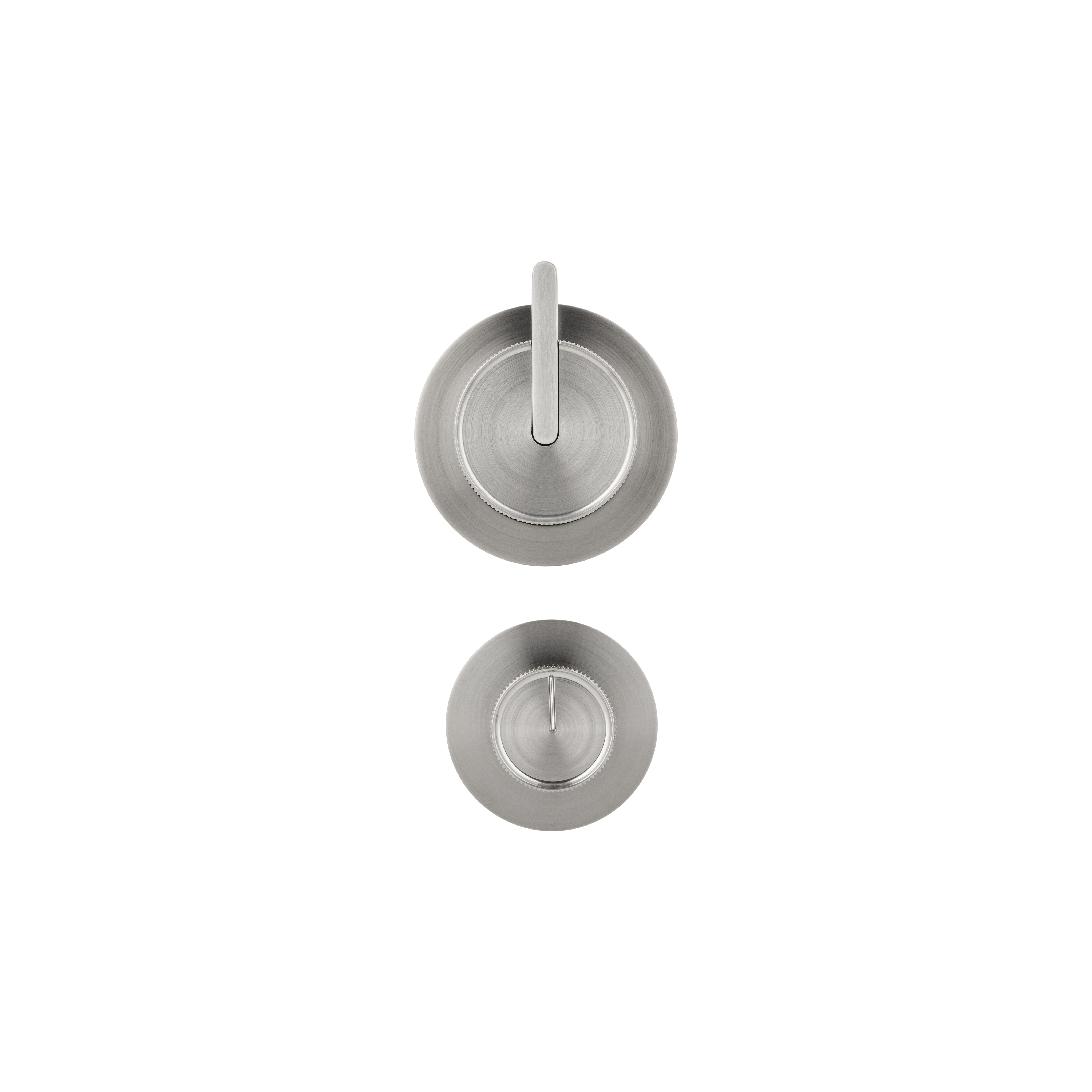

Namika Shower Bottom Diverter - Brushed Nickel

SKU: 15698

in stock


Namika Shower Bottom Diverter - Brushed Nickel

SKU: 15698

in stock


£161.98
Add to Basket
Also Bought With
Chevron-Down

Product Details

Redefine your interiors with textured tapware. The reeded details of our Namika Shower Bottom Diverter evoke a tactile experience, transforming your space into a world to be seen and felt.

Rotate the knob to conveniently switch water sources, either between rain shower and handheld function or rain shower and bath spout. Pull the knurled tap handle outwards to adjust the water pressure, and twist left and right for temperature control.

Features:

– Solid brass construction for easy cleaning.
– ABI HeatShield PVD Electro Colouring System enhances corrosion resistance while being environmentally friendly.

Mixer Handle Dimensions:

– Backplate Diameter: 62mm
– Backplate Depth: 6mm
– Long Sleeve Diameter: 42mm
– Long Sleeve Depth: 30mm
– Short Sleeve Diameter: 42mm
– Short Sleeve Depth: 15mm
– Handle Length: 39mm
– Handle Width: 6mm
– Handle Depth: 8mm
– Handle Body Diameter: 42mm
– Handle Body Depth: 32mm

Diverter Dimensions:

– Handle Diameter: 29mm
– Handle Depth: 22mm
– Backplate Diameter: 50mm
– Sleeve Diameter: 20mm

Please Note:

– This wall shower diverter is not thermostatic. Your plumber may be able to install a Thermostatic Mixing Valve (TMV) to enable this functionality. The TMV is installed after the hot supply, providing you with a blended hot temperature that will help prevent scalding if there is a sudden drop in cold supply to the mixer. Installing a TMV is a common installation method in the UK.

Please head to the ‘Downloads’ tab and under ‘Product Documents’ refer to our TMV Placement document for more information and placement examples.

For further inspiration, explore our complete range of shower diverters.

Browse our complete range of brushed nickel tapware.

Product Info

  • Features
  • Colouring
  • Specifications
  • Warranty
  • Environment
  • Downloads
Solid Brass
PVD (Physical Vapour Deposition)
Ease of Cleaning
Brushed Nickel

At ABI, we use the highest quality materials and colouring processes to ensure a durable and timeless finish that you will love for years to come. Like many other materials, the colour may appear differently from product to product due to lighting within the installation location and reflection on products with different surfaces (flat and curved).

While we do our best to ensure consistency between batches and use strict colour toning and matching quality procedures to lessen variations, we acknowledge that there may be minor variations between batches. We encourage you to check over your items once received to ensure that you are satisfied with the finish. Should you receive anything of concern, our team is here to help!

SKU 15698
Weight 1.6kg
Brand ABI Interiors
Finish/Coating (PVD) Brushed Nickel - ABI’s Heat Shield – Industrial Grade Electro Colouring System (Physical Vapour Deposition)
Construction Solid Brass
Dimensions (mm) Mixer Handle Dimensions:

Backplate Diameter: 62mm
Backplate Depth: 6mm
Long Sleeve Diameter: 42mm
Long Sleeve Depth: 30mm
Short Sleeve Diameter: 42mm
Short Sleeve Depth: 15mm
Handle Length: 39mm
Handle Width: 6mm
Handle Depth: 8mm
Handle Body Diameter: 42mm
Handle Body Depth: 32mm

Diverter Dimensions:

Handle Diameter: 29mm
Handle Depth: 22mm
Backplate Diameter: 50mm
Sleeve Diameter: 20mm
What's In The Box Box 1 - In-Wall Kit (required for rough-in):
1 x Shower Bottom Diverter Body
2 x Fixing Screw
1 x Diverter Cartridge
1 x Mixer Cartridge
1 x Locking Nut

Box 2 - Handle Kit (required for fit-off):
1 x Short (15mm) Sleeve
1 x Long (30mm) Sleeve
1 x Dome
1 x Backplate
1 x Handle
1 x Grub Screw
1 x Allen Key

Box 3 - Diverter Kit (required for fit-off):
1 x Diverter Sleeve
1 x Diverter Backplate
1 x Diverter Handle

Specification guides can be found under the Downloads tab.

PRODUCT DESCRIPTION RESIDENTIAL WARRANTY NON-RESIDENTIAL WARRANTY OUTDOOR WARRANTY
Name & Finish SKU Structure Finish Cartridge Other Structure Finish Cartridge Other Structure Finish Cartridge Other
Namika Shower Bottom Diverter - Brushed Nickel 15698 25 5 7 2 10 1 5 1 - - - -
