Product Details

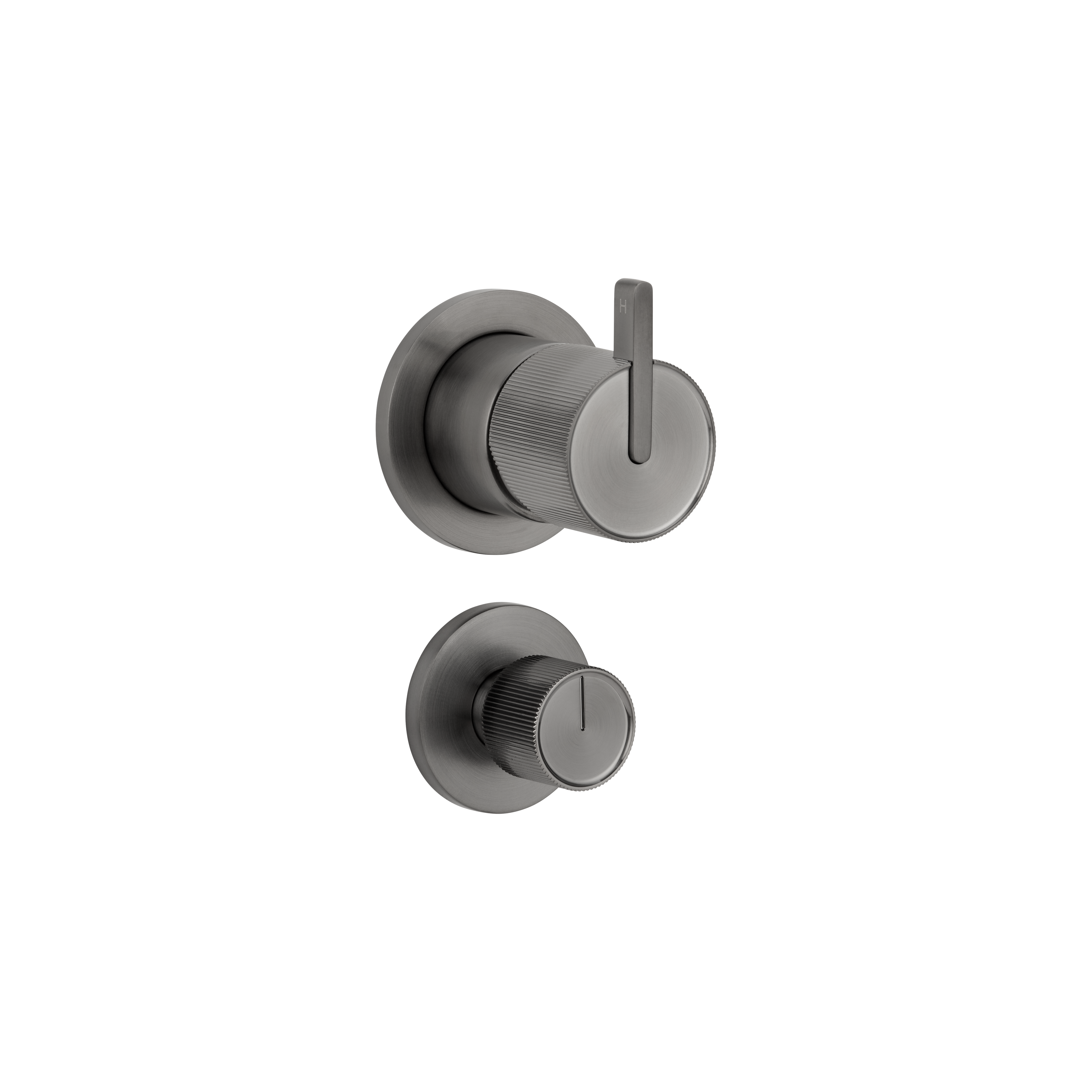

Redefine your interiors with textured tapware. The reeded details of our Namika Shower Bottom Diverter evoke a tactile experience, transforming your space into a world to be seen and felt.
Rotate the knob to conveniently switch water sources, either between rain shower and handheld function or rain shower and bath spout. Pull the knurled tap handle outwards to adjust the water pressure, and twist left and right for temperature control.
Features:
– Solid brass construction for easy cleaning.
– ABI HeatShield PVD Electro Colouring System enhances corrosion resistance while being environmentally friendly.
Mixer Handle Dimensions:
– Backplate Diameter: 62mm
– Backplate Depth: 6mm
– Long Sleeve Diameter: 42mm
– Long Sleeve Depth: 30mm
– Short Sleeve Diameter: 42mm
– Short Sleeve Depth: 15mm
– Handle Length: 39mm
– Handle Width: 6mm
– Handle Depth: 8mm
– Handle Body Diameter: 42mm
– Handle Body Depth: 32mm
Diverter Dimensions:
– Handle Diameter: 29mm
– Handle Depth: 22mm
– Backplate Diameter: 50mm
– Sleeve Diameter: 20mm
Please Note:
– This wall shower diverter is not thermostatic. Your plumber may be able to install a Thermostatic Mixing Valve (TMV) to enable this functionality. The TMV is installed after the hot supply, providing you with a blended hot temperature that will help prevent scalding if there is a sudden drop in cold supply to the mixer. Installing a TMV is a common installation method in the UK.
Please head to the ‘Downloads’ tab and under ‘Product Documents’ refer to our TMV Placement document for more information and placement examples.
For further inspiration, explore our complete range of shower diverters.
Browse our complete range of brushed gunmetal tapware.
Shop Other Colour Options
Shop Other Colour Options
Product Info
- Features
- Specifications
- Warranty
- Environment
- Downloads
Solid Brass
PVD (Physical Vapour Deposition)
Ease of Cleaning
SKU | 15697 |
Weight | 1.6kg |
Brand | ABI Interiors |
Finish/Coating | (PVD) Brushed Gunmetal - ABI’s Heat Shield – Industrial Grade Electro Colouring System (Physical Vapour Deposition) |
Construction | Solid Brass |
Dimensions (mm) | Mixer Handle Dimensions: Backplate Diameter: 62mm Backplate Depth: 6mm Long Sleeve Diameter: 42mm Long Sleeve Depth: 30mm Short Sleeve Diameter: 42mm Short Sleeve Depth: 15mm Handle Length: 39mm Handle Width: 6mm Handle Depth: 8mm Handle Body Diameter: 42mm Handle Body Depth: 32mm Diverter Dimensions: Handle Diameter: 29mm Handle Depth: 22mm Backplate Diameter: 50mm Sleeve Diameter: 20mm |
What's In The Box | Box 1 - In-Wall Kit (required for rough-in): 1 x Shower Bottom Diverter Body 2 x Fixing Screw 1 x Diverter Cartridge 1 x Mixer Cartridge 1 x Locking Nut Box 2 - Handle Kit (required for fit-off): 1 x Short (15mm) Sleeve 1 x Long (30mm) Sleeve 1 x Dome 1 x Backplate 1 x Handle 1 x Grub Screw 1 x Allen Key Box 3 - Diverter Kit (required for fit-off): 1 x Diverter Sleeve 1 x Diverter Backplate 1 x Diverter Handle |
Specification guides can be found under the Downloads tab.
PRODUCT DESCRIPTION | RESIDENTIAL WARRANTY | NON-RESIDENTIAL WARRANTY | OUTDOOR WARRANTY | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Name & Finish | SKU | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other |
Namika Shower Bottom Diverter - Brushed Gunmetal | 15697 | 25 | 5 | 7 | 2 | 10 | 1 | 5 | 1 | - | - | - | - |
Product Documents
Namika Shower Bottom Diverter - Specification | |
TMV Placement - Specification |
