Product Details
Reinvigorate your bathroom with the vintage Cross Assembly Handle Kit. It allows instant interchangeability with your existing pre-installed cartridge.
Because your cartridge is already installed, you can choose from our stunning range of finishes to refresh your space.
Please Note:
– This is just the handle kit and does not include the cartridge body. It is a requirement that the cartridge body is installed prior to the handle kit.
– Breech is not included. Please consult with your licensed plumber whether this in-wall component is required. This can be purchased from our in-wall components page.
– Extended Spindles are also available for purchase separately.
Features:
– Easy to clean solid brass construction
– PrimeShield Lacquer Technology (PSLT) to provide a hard durable semi-gloss finish that is easy to clean and doesn’t absorb dirty marks
– Easily interchangeable with your existing pre-installed cartridge
Dimensions:
– Handle length: 53mm
– Handle depth: 15mm
– Handle diameter: 42mm
Shop Other Colour Options
Shop Other Colour Options
Product Info
Solid Brass
.svg){kind=icon}
PSLT (PrimeShield Lacquer Technology)
Ease of Installation
| SKU | 11828 |
| Weight | 0.9kg |
| Brand | ABI Interiors |
| Finish/Coating | White - Semi-Gloss PrimeShield Lacquer Technology (PSLT) |
| Construction | Solid Brass |
| Dimensions (mm) | Handle length: 53mm Handle depth: 15mm Handle diameter: 42mm |

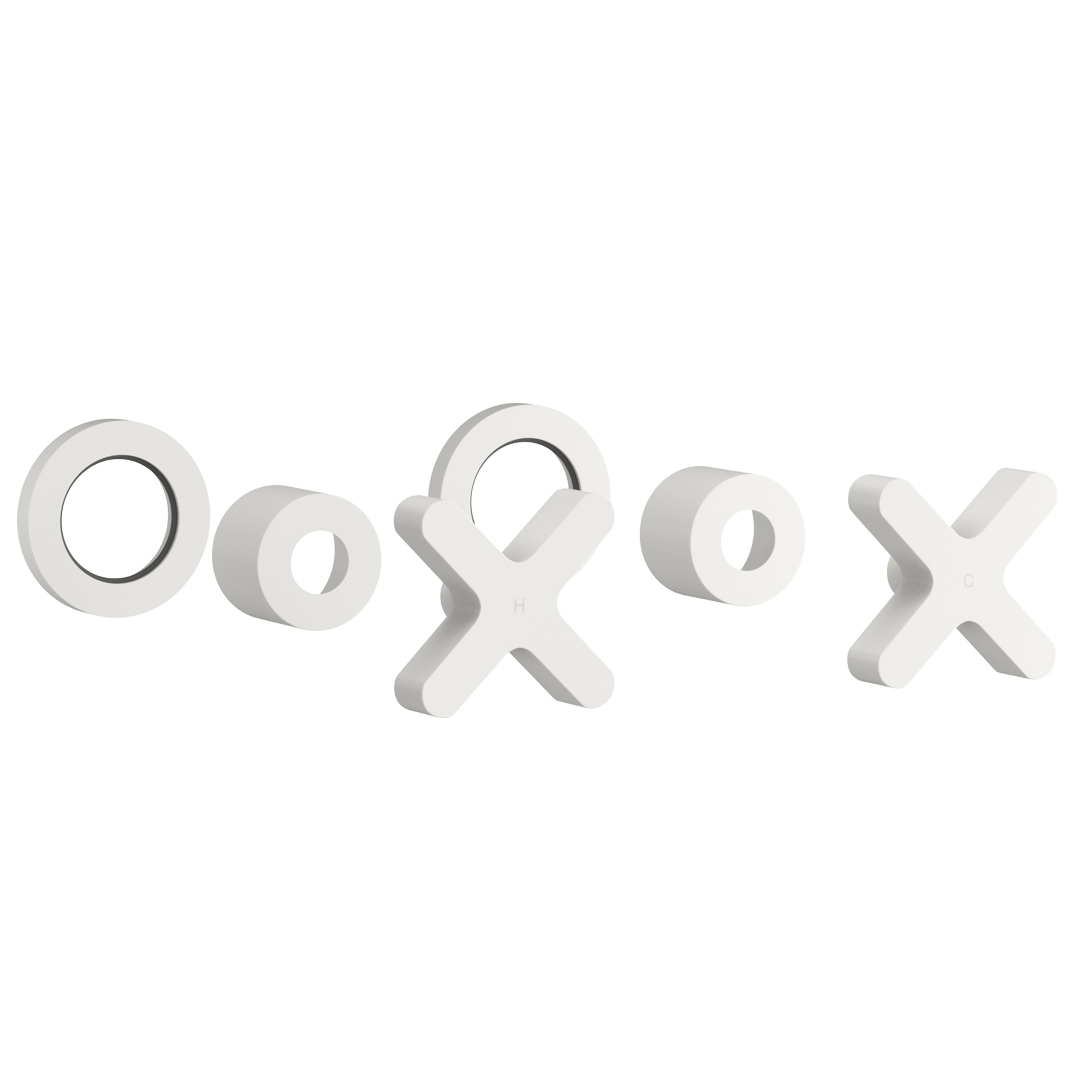

| What's In The Box | 2 x Backplates 2 x Sleeves 2 x Grub Screws 1 x Allen Key 2 x Handles |
| Warranty | 25 Years Structural Warranty 2 Years Finish/Coating Warranty |
Specification guides can be found under the Downloads tab.
| PRODUCT DESCRIPTION | RESIDENTIAL WARRANTY | NON-RESIDENTIAL WARRANTY | OUTDOOR WARRANTY | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Name & Finish | SKU | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other |
| Cross Assembly Handle Kit – White | 11828 | 25 | 2 | - | 2 | 10 | 1 | - | 1 | - | - | - | - |
Product Documents
| Cross Assembly Handle Kit - Specification |  |
Bim Files
| View Library |  |
