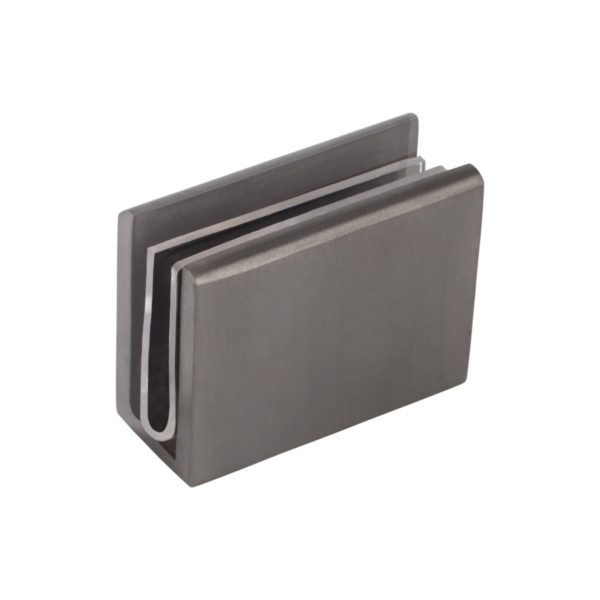

With a sharp and slimline design, the Pius Glass Panel Clip will instil confidence thanks to its hand-polished stainless steel construction.
Pius is designed for 12mm glass but can also be adjusted to work with 8 – 10mm glass. For glass panels less than 12mm thick, ABI Interiors recommends using clear rubber packers (which can be supplied by your local glazier). Generally, 3 – 4 clips are required per glass panel. However, this depends on the size and height of the glass panel.
– PVD (Physical Vapour Deposition) colouring system, keeping the finish of your product in beautiful condition for many years to come.
– 304 stainless steel, a premium material that ensures durability for commercial and indoor use.

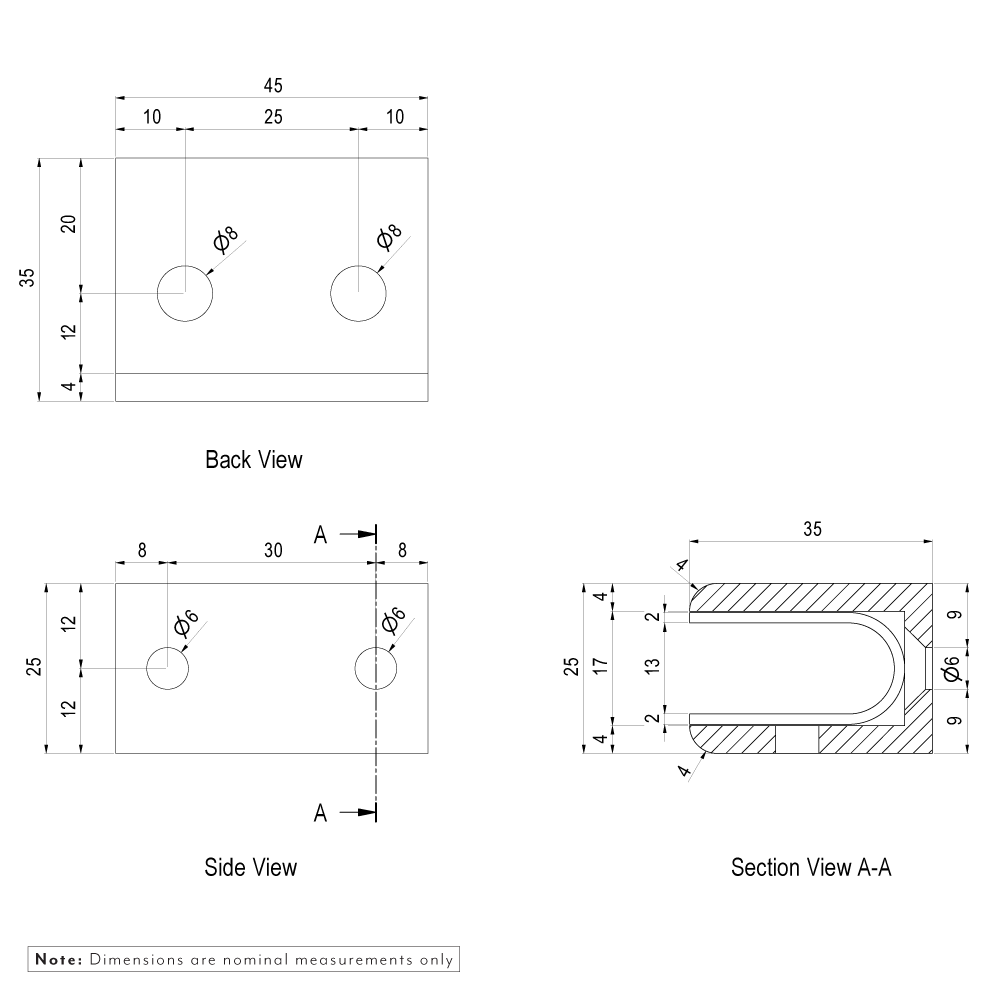

– Length: 45mm
– Width: 25mm
– Height: 35mm
304 Stainless Steel
PVD (Physical Vapour Deposition)
Ease of Installation
|Finish/Coating||(PVD) Brushed Gunmetal - ABI’s Heat Shield – Industrial Grade Electro Colouring System (Physical Vapour Deposition)|
|Construction||304 Stainless Steel|
|Application||Pius is designed for 12mm glass, but can be adjusted to work with 8-10mm. For glass panels less than 12mm thickness ABI recommends clear rubber packers to be used (which can be supplied by your local glazier).|
|Warranty||10 Years structural warranty
5 Years finish/coating warranty
Specification guides can be found under the Downloads tab.
|PRODUCT DESCRIPTION||RESIDENTIAL WARRANTY||NON-RESIDENTIAL WARRANTY||OUTDOOR WARRANTY|
|Name & Finish||SKU||Structure||Finish||Cartridge||Other||Structure||Finish||Cartridge||Other||Structure||Finish||Cartridge||Other|
|Pius Glass Panel Clip - Brushed Gunmetal||10||5||-||2||5||1||-||1||-||-||-||-|
|Pius Glass Panel Clip - Specification|
What type of coating is used on this product, is it durable?
ABI's Heat Shield – Industrial grade PVD electro colouring system - This is the most durable finish available on the market, the same process is used to strengthen the end of drill bits.
Can this product be used externally / outside?
ABI's warranty does not cover external use due to the coatings being put under much harsher conditions and UV light. However the structural integirty of the glass clip would be fine.
Can the Pius Glass Panel Clip hold the glass panel weight?
The Pius Glass Panel Clip should not be holding weight of the glass. It's function is to support and/or stabilise the glass panels only
Can our Pius Clips be floor-mounted as well as wall-mounted?
Yes, our Pius Clips can be both floor and wall-mounted. This product comes with fixing screws and plugs that are compatible with tiles and concrete.
