Product Details
Sometimes you want the freedom to retain your existing cabinetry and replace the handles without creating new fixing holes. Our innovative Modi Adjustable Cabinetry Pull is designed for flexibility, helping refresh the look of your existing cabinetry with fully adjustable fixing points.
With a solid brass construction, this easy-to-use product is suitable for both retrofitting or new installations.
Please note:
–This product is designed to work with existing cabinetry, however, holes cannot be larger than 6mm.
Features:
– Solid brass construction
– Fully adjustable (can be set to suit many widths)
– Easy to use (no power tools required for retro fits)
– Fits all cabinetry (up to 40mm in thickness)

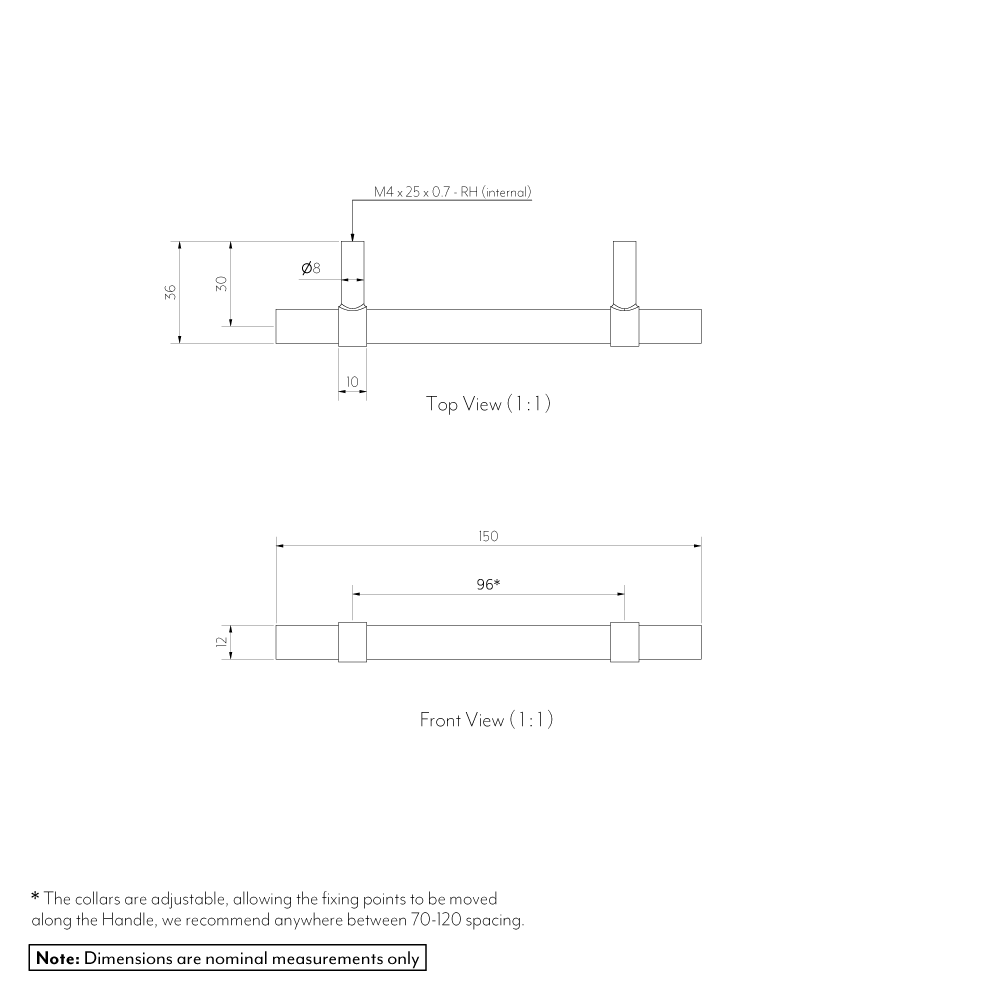

Dimensions:
– Length: 150mm
– Projection: 36mm
– Handle Diameter: 12mm
Shop Other Colour Options
Shop Other Colour Options
Product Info
SKU | 14716 |
Weight | 0.175kg |
Brand | ABI Interiors |
Finish/Coating | (PVD) Brushed Nickel - ABI’s Heat Shield – Industrial Grade Electro Colouring System (Physical Vapour Deposition) |
Construction | Solid Brass |
Dimensions | Length: 150mm Projection: 36mm Handle Diameter: 12mm |
Hole Distance | 10-135 mm (centre to centre) |
Hardware | Mounting hardware included |
What's In The Box | 1 x Handle 2 x Collars 2 x Grub screws 2 x Fixing screws (Snap-off’s) |
Warranty | 10 Years Structural Warranty 1 Year Finish/Coating Warranty |
ETA |
Specification guides can be found under the Downloads tab.
PRODUCT DESCRIPTION | RESIDENTIAL WARRANTY | NON-RESIDENTIAL WARRANTY | OUTDOOR WARRANTY | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Name & Finish | SKU | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other |
Modi Adjustable Cabinetry Pull 150mm - Brushed Nickel | 14716 | 10 | 1 | - | 1 | 5 | 1 | - | 1 | - | - | - | - |
Product Documents
Modi Adjustable Cabinetry Pull 150mm - Specification |
Product FAQs
How does the Modi Adjustable Cabinetry Pull function?
The collars are fully adjustable and allow the fixing points to be moved along the handle. We recommend anywhere between 100 - 220 spacing.
Can the 150mm Modi Adjustable Cabinetry Pull work with my existing fixing holes even though they are outside the recommended range of 60 - 120mm?
Yes, the 150mm Pull can work with any distance up to 140mm. However, please be advised that this is only an aesthetic recommendation.
What are the two holes in the handle for?
These are guide markings that indicate the recommended spacing.
If my carpenter would like to purchase his own fixing bolts what size would be suitable?
We recommend using M4 x 0.7 pitch fixing bolts.
How should I clean this product?
We recommend cleaning with soap and water or a mild liquid detergent. For comprehensive cleaning instructions, please refer to our Care Guide.
What's in the box?
1 x Handle
2 x Collars
2 x Grub screws
2 x Fixing screws (Snap-off’s)
Can the Modi Cabinetry Pulls be used on integrated appliances?
Yes, however we recommend that you initially confirm with your trades before integration.
