Product Details

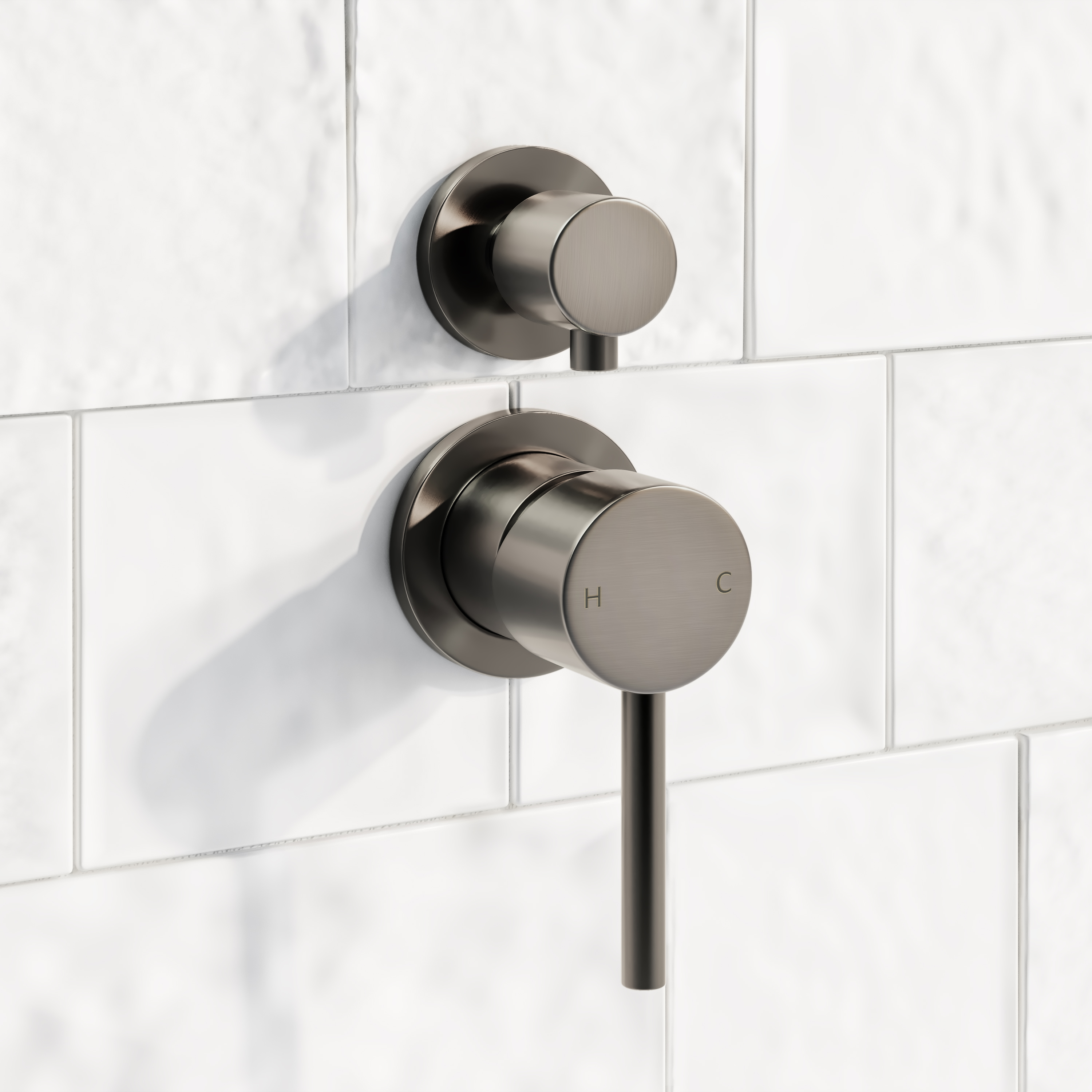

The Elysian Shower Top Diverter allows you to easily switch between rain head and hand held function or between bath spout and rain shower, by a simple rotation of the knob.
Pull on the mixer handle to adjust pressure control and twist left and right for temperature control. Functionality at its finest.
Please Note:
– This wall shower diverter is not thermostatic. Your plumber may be able to install a Thermostatic Mixing Valve (TMV) to enable this functionality. The TMV is installed after the hot supply, providing you with a blended hot temperature that will help prevent scalding if there is a sudden drop in cold supply to the mixer. Installing a TMV is a common installation method in the UK.
Please head to the ‘Downloads’ tab and under ‘Product Documents’ refer to our TMV Placement document for more information and placement examples.
If you are looking for a thermostatic alternative, please refer to our Eden Thermostatic Shower Rail Set: here
Features:
– PVD (Physical Vapour Deposition)
– Pressure control
– Temperature control
Dimensions:
– Backplate Diameter: 62mm & 50mm
– Handle Length: 86mm
Browse our complete range of brushed gunmetal tapware.
Shop Other Colour Options
Shop Other Colour Options
Product Info
- Features
- Specifications
- Warranty
- Environment
- Downloads
Solid Brass
PVD (Physical Vapour Deposition)
Precise Pressure and Temperature Control
SKU | 14529 |
Weight | 1.5kg |
Brand | ABI Interiors |
Finish/Coating | (PVD) Brushed Gunmetal - ABI’s Heat Shield – Industrial Grade Electro Colouring System (Physical Vapour Deposition) |
Construction | Solid Brass |
Dimensions (mm) | Backplate Diameter: 62mm & 50mm Handle Length: 86mm |
Function | Turn Button |
What's In The Box | In-Wall Kit (required for rough-in): 1 x Shower Top Diverter Body 2 x Fixing Screw 1 x Diverter Cartridge 1 x Mixer Cartridge 1 x Locking Nut Handle Kit (required for fit-off): 1 x Short (15mm) Sleeve 1 x Long (30mm) Sleeve 1 x Dome 1 x Backplate 1 x Handle 1 x Grub Screw 1 x Grub Screw Cap 1 x Allen Key Diverter Kit (required for fit-off): 1 x Diverter Sleeve 1 x Diverter Backplate 1 x Diverter Button 1 x Diverter Stick |
Warranty | 25 Years Structural Warranty 7 Years Cartridge Warranty 5 Years Finish/Coating Warranty |
Specification guides can be found under the Downloads tab.
PRODUCT DESCRIPTION | RESIDENTIAL WARRANTY | NON-RESIDENTIAL WARRANTY | OUTDOOR WARRANTY | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Name & Finish | SKU | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other |
Elysian Shower Top Diverter - Brushed Gunmetal | 14529 | 25 | 5 | 7 | 2 | 10 | 1 | 5 | 1 | - | - | - | - |
Product Documents

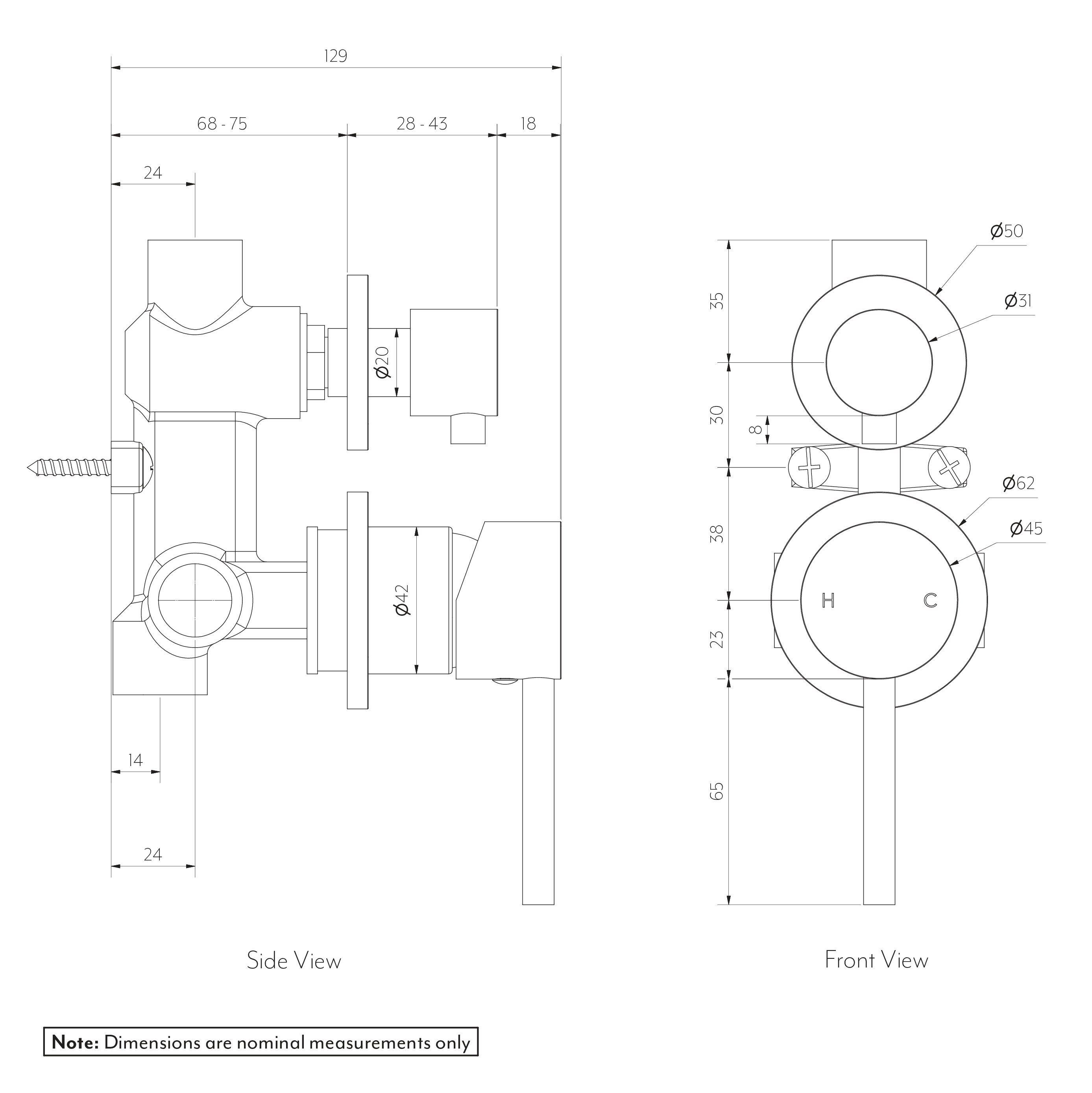

Elysian Shower Top Diverter - Specification | |
TMV Placement - Specification |
Product FAQs
What type of coating is used on this product, is it durable?
ABI’s Heat Shield – Industrial Grade Electro Colouring System (Physical Vapour Deposition) - This is an extremely durable coating, far superior to a powdercoated coating.
Can this product be used externally / outside?
ABI's warranty does not cover external use due to the coatings being put under much harsher conditions and UV light. However the structural integirty of the tap would be fine.
