Product Details
The Shower Trap is designed to collect and transfer waste water to the property’s waste pipe. It also helps prevent inconvenient blockages by allowing water to drain freely without debris.
It is used in conjunction with our Shower Trays and Pixi Tile Insert Shower Channel Waste 800mm. It features a white, plastic construction with removable baskets for easy cleaning.
Please note:
– This product must be installed by a licensed plumber and in compliance with local regulations.
Features:
– Prevents debris from blocking the shower drain
– 70mm waste depth with a 50mm water trap for effective drainage
– Easy to clean and maintain with accessible components
– Secure mechanical 1½” pipe connection
– Fast flow rate of 34 L/min (tested to BS EN 274-2:2002 standards)
Dimensions:
– Width: 70mm
– Length: 110mm
Product Info
Ease of Cleaning
Ease of Installation
Ease of Use
| SKU | 18386 |
| Weight | 0.5kg |
| Construction | Polypropylene |

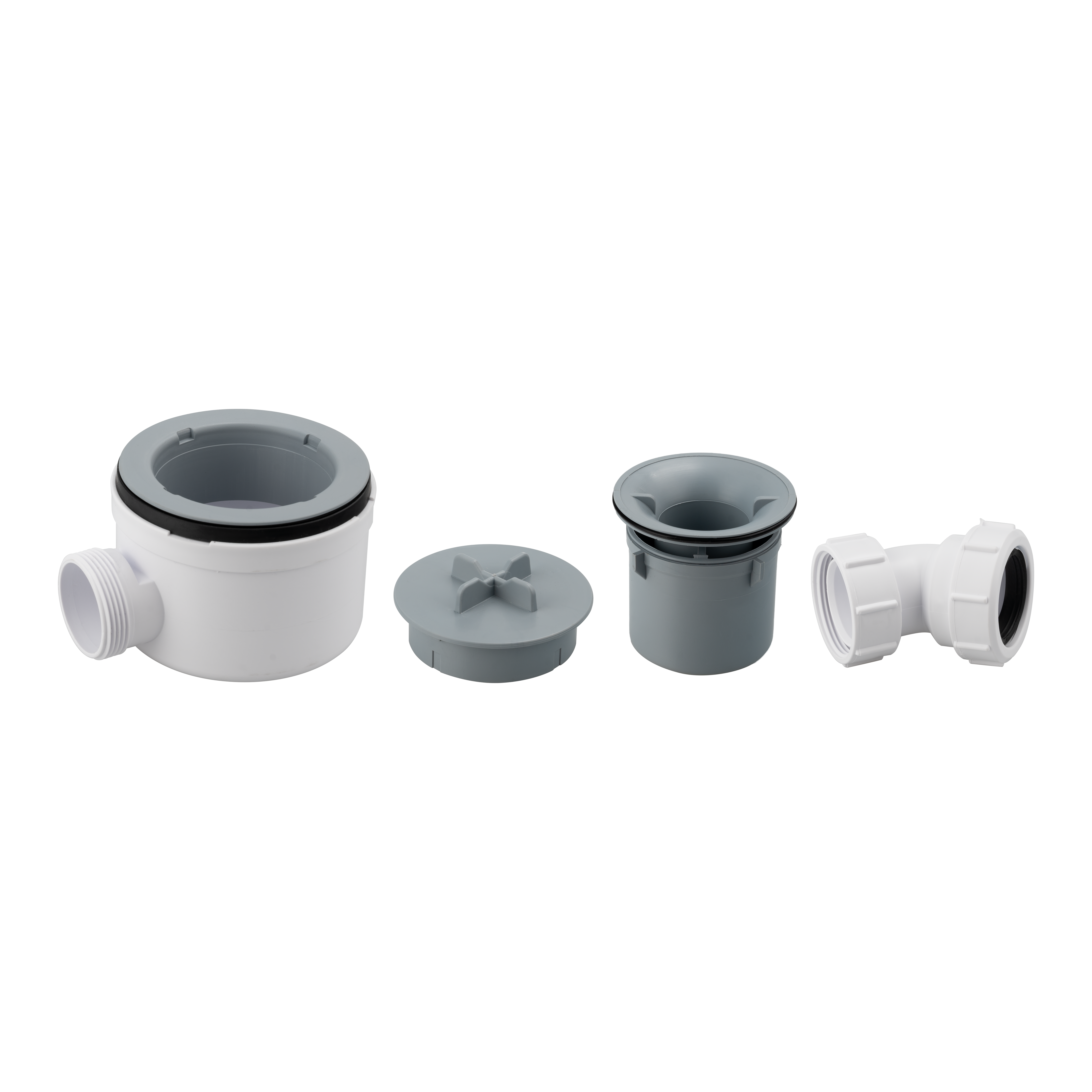

| What's In The Box? | 1 x Lock Spanner Tool 1 x 70mm Shower Trap 1 x 1 1/2inch Mechanical Pipe Fixing 2 x Seals 1 x Dip Tube |
| Dimensions (mm) | – Width: 70mm – Length: 110mm |
| ETA |

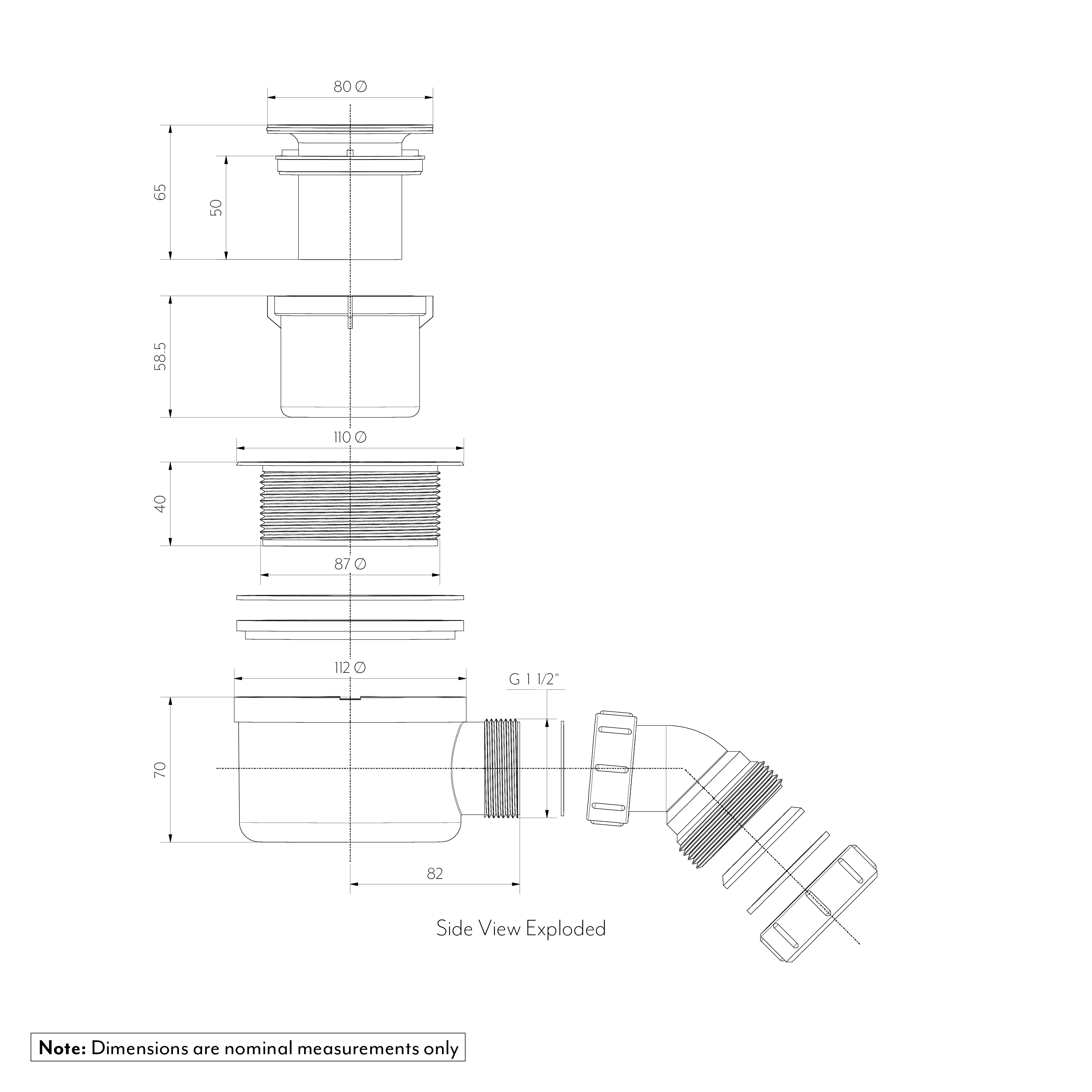

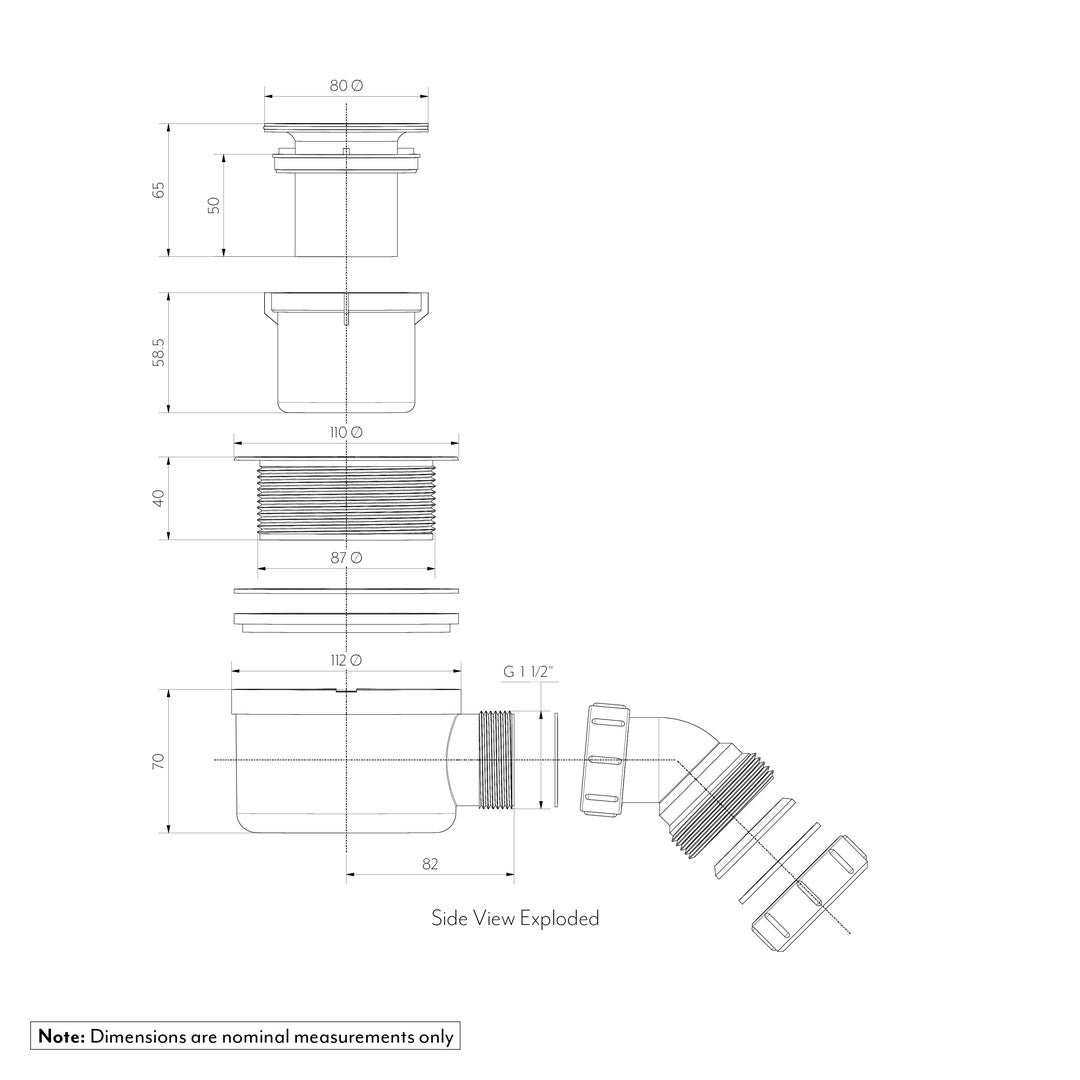

Specification guides can be found under the Downloads tab.
Bim Files
| View Library |  |
Product FAQs
How do you recommend cleaning the Shower Trap?
The Shower Trap has a removable waste cover for easy cleaning. We recommend cleaning regularly by removing the cover and rinsing with clean water. Be sure to remove all hair and soap residue to prevent blockages.
Which ABI products is the Shower Trap compatible with?
This product is used with our Shower Tray and the Pixi Tile Insert Shower Channel Waste 800mm.
What's in the box?
1 x Lock Spanner Tool
1 x 70mm Shower Trap
1 x 1 1/2inch Mechanical Pipe Fixing
2 x Seals
1 x Dip Tube
