Product Details

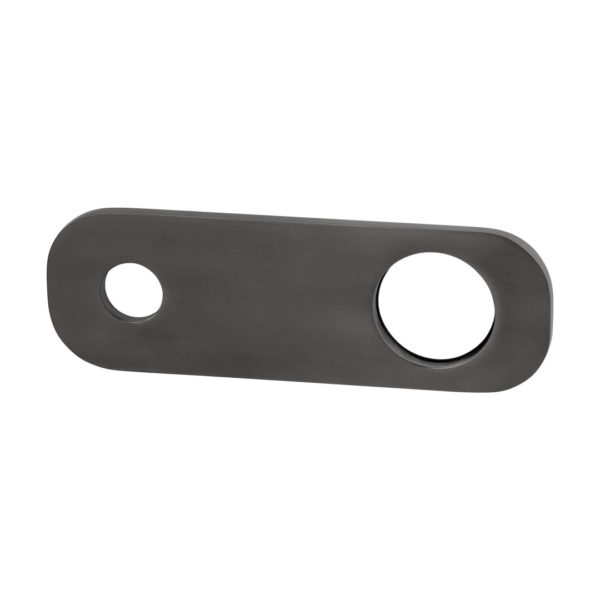

The Rounded Rectangle Mixer and Spout Backplate unifies your mixer and spout set in a sleek, contemporary finish. The minimalistic design and range of colour options of the backplate allow for versatility in a variety of spaces and schemes, emphasising the unique tapware in which it surrounds.
Please note:
– This does not include the mixer or spout.
– We recommend using the template provided at the rough-in stage for best results.
Features:
– Easy to clean solid brass construction
– (PVD) Physical Vapour Deposition

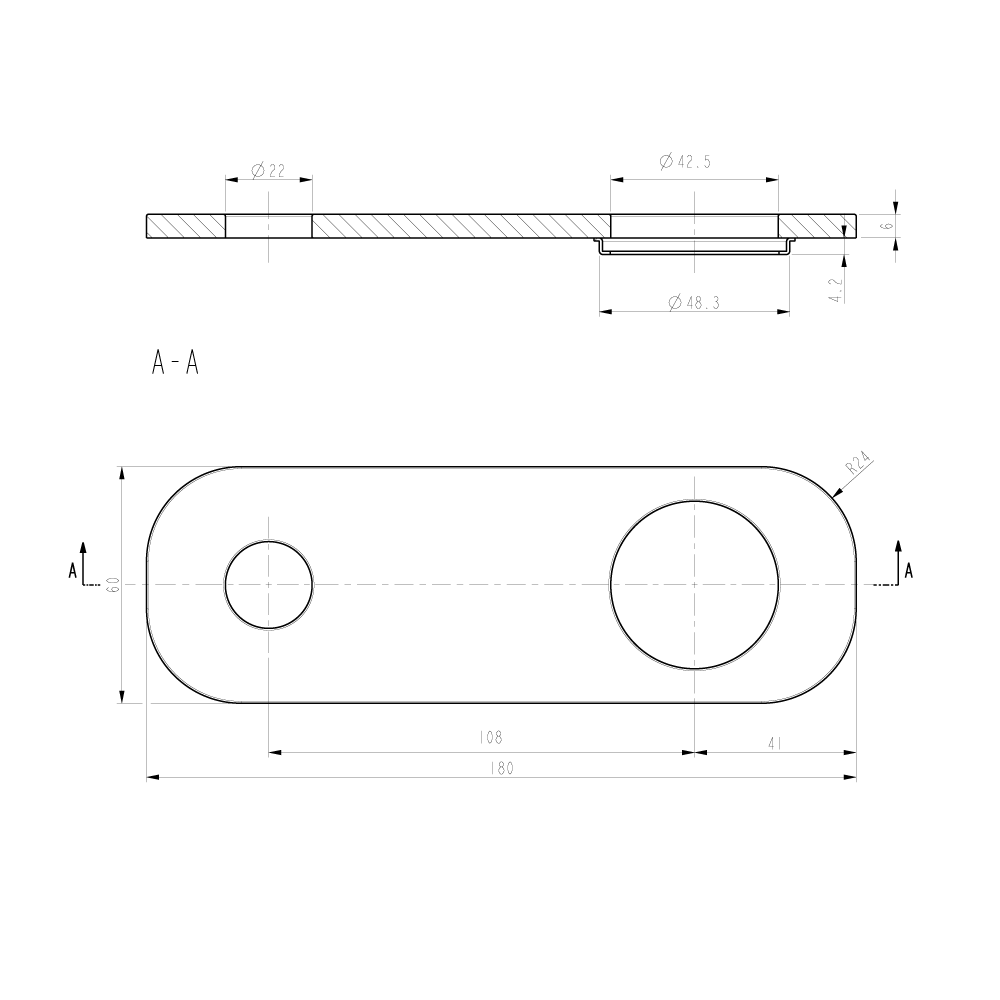

Dimensions:
– Length: 180mm
– Width: 60mm
– Depth: 6mm
Shop Other Colour Options
Shop Other Colour Options
Product Info
Brushed Gunmetal
At ABI, we use the highest quality materials and colouring processes to ensure a durable and timeless finish that you will love for years to come. Like many other materials, the colour may appear differently from product to product due to lighting within the installation location and reflection on products with different surfaces (flat and curved).
While we do our best to ensure consistency between batches and use strict colour toning and matching quality procedures to lessen variations, we acknowledge that there may be minor variations between batches. We encourage you to check over your items once received to ensure that you are satisfied with the finish. Should you receive anything of concern, our team is here to help!
| SKU | 12320 |
| Weight | 0.8kg |
| BRAND | ABI International |
| DIMENSIONS (MM) | 180mm x 60mm x 6mm |
| MATERIAL | Solid Brass |
| FINISH/COATING | Brushed Gunmetal - ABI's Heat Shield – Industrial Grade PVD Electro Colouring System |
| WARRANTY | 25 years structural warranty 10 years cartridge warranty 5 years finish/coating warrant |
| Set-out Distance | 108mm Centre to Centre |
Specification guides can be found under the Downloads tab.
Product Documents
| Rounded Rectangle Mixer & Spout Backplate - Specification |  |
Product FAQs
What tapware can be installed with this product?

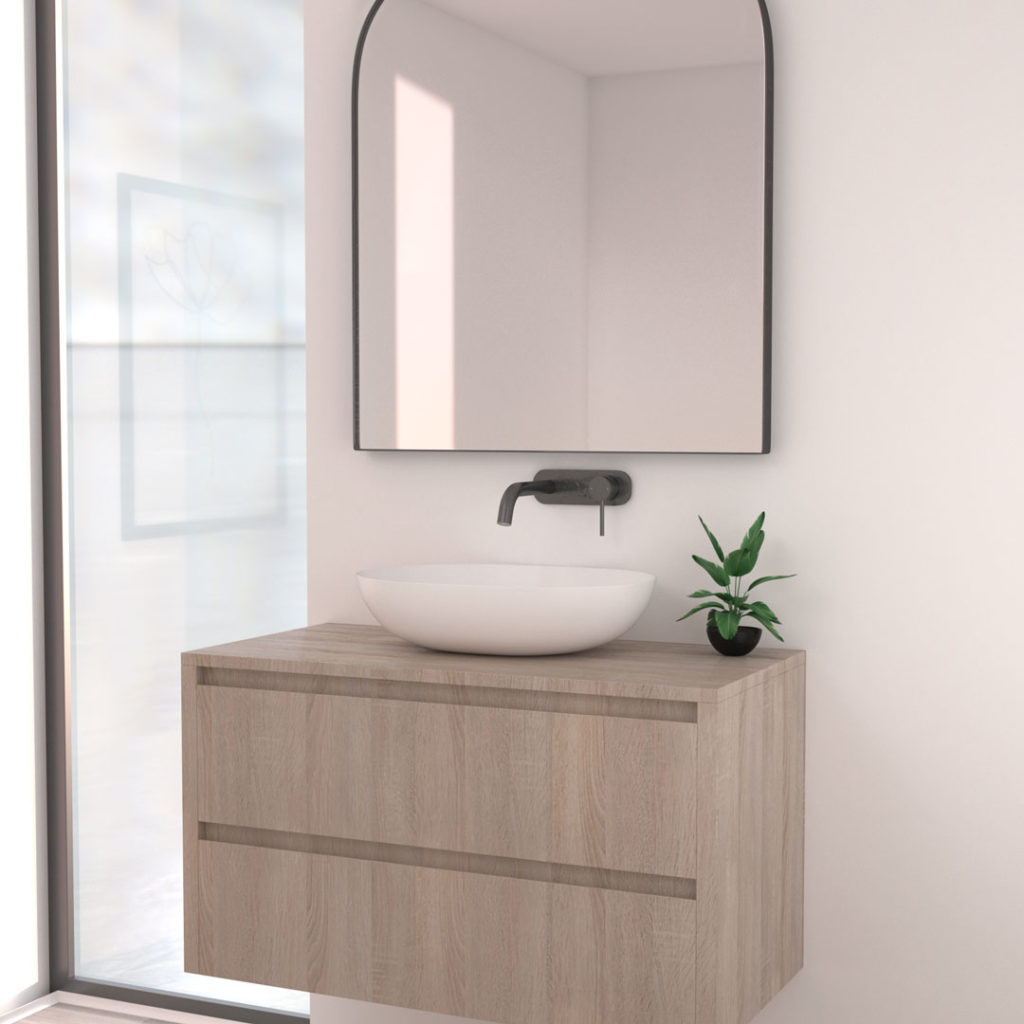

The Rounded Rectangle Backplate can be installed with our Wall Mounted Spout OR Mini Wall Mounted Spout and either an Elysian Minimal Mixer, Milani Progressive Mixer, Barre Progressive Mixer OR Cross Progressive Mixer.
I've already installed my mixer and spout, can I add the backplate after installation?
Unless you have installed your mixer and spout with an exact 76mm space between mixer and spout (or 108mm between centre of the spout and mixer hole), no. The backplate needs to be installed to exact specifications. ABI recommends using the template provided at rough-in stage.
What side does the spout need to be installed on?
The choice is yours - Position your Mixer & Spout on the right or left side of the Backplate.
