Colour: White
Product Details

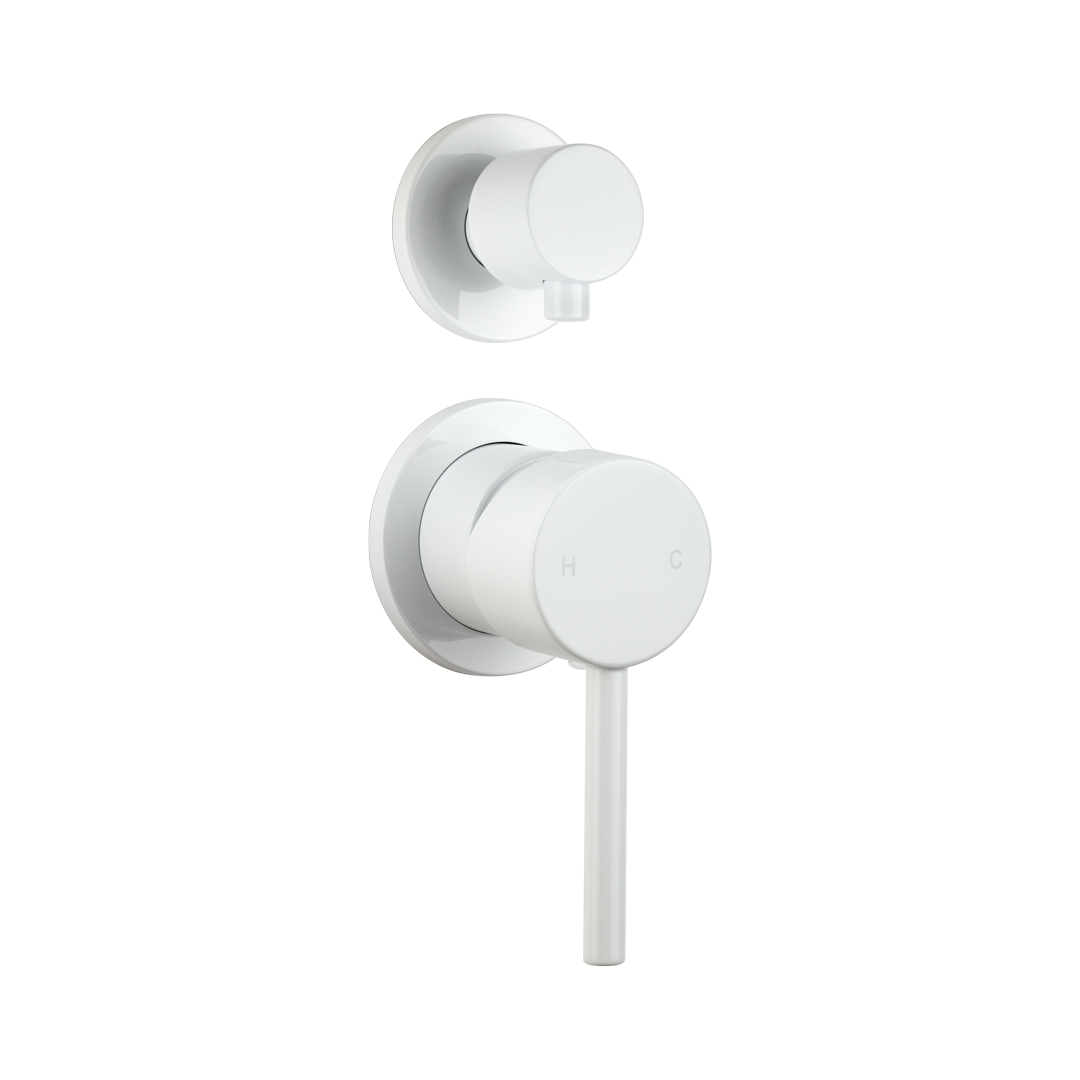

The Elysian Shower Top Diverter allows you to easily switch between rain head and hand held function or between bath spout and rain shower, by a simple rotation of the knob.
Pull on the mixer handle to adjust pressure control and twist left and right for temperature control. Functionality at its finest.
Please Note:
– This wall shower diverter is not thermostatic. Your plumber may be able to install a Thermostatic Mixing Valve (TMV) to enable this functionality. The TMV is installed after the hot supply, providing you with a blended hot temperature that will help prevent scalding if there is a sudden drop in cold supply to the mixer. Installing a TMV is a common installation method in the UK.
Please head to the ‘Downloads’ tab and under ‘Product Documents’ refer to our TMV Placement document for more information and placement examples.
If you are looking for a thermostatic alternative, please refer to our Eden Thermostatic Shower Rail Set: here
Features:
– PSLT (PrimeShield Lacquer Technology)
– Pressure control
– Temperature control
Dimensions:
– Backplate Diameter: 62mm & 50mm
– Handle Length: 86mm
Product Features
Solid Brass
.svg){kind=icon}
PSLT (PrimeShield Lacquer Technology)
Precise Pressure and Temperature Control
Material
Construction
Solid Brass
Finish/Coating
White - Semi-Gloss PrimeShield Lacquer Technology (PSLT)
*We implement strict quality procedures to minimise colour variations, however we acknowledge that there may be minor differences between batches. We encourage you to check over your items once received to ensure that you are satisfied with the finish. Should you receive anything of concern, our team is here to help!
For more information on our finish quality
Specifications
| SKU | 14533 |
| Weight | 1.5kg |
| Brand | ABI Interiors |
| Finish/Coating | White - Semi-Gloss PrimeShield Lacquer Technology (PSLT) |
| Construction | Solid Brass |
| Dimensions (mm) | Backplate Diameter: 62mm & 50mm Handle Length: 86mm |
| Function | Turn Knob |
| What's In The Box | In-Wall Kit (required for rough-in): 1 x Shower Top Diverter Body 2 x Fixing Screw 1 x Diverter Cartridge 1 x Mixer Cartridge 1 x Locking Nut Handle Kit (required for fit-off): 1 x Short (15mm) Sleeve 1 x Long (30mm) Sleeve 1 x Dome 1 x Backplate 1 x Handle 1 x Grub Screw 1 x Grub Screw Cap 1 x Allen Key Diverter Kit (required for fit-off): 1 x Diverter Sleeve 1 x Diverter Backplate 1 x Diverter Button 1 x Diverter Stick |
| Warranty | 25 Years Structural Warranty 7 Years Cartridge Warranty 2 Years Finish/Coating Warranty |
| Certification | KIWA KUKreg4 |
Specification guides can be found under the Downloads tab.
Downloads
Product Documents
| Elysian Shower Top Diverter - Specification |  |
| TMV Placement - Specification | |
Bim Files
| View Product |  |
| View Collection | |
| View Library | |
White
At ABI, we use the highest quality materials and colouring processes to ensure a durable and timeless finish that you will love for years to come. Like many other materials, the colour may appear differently from product to product due to lighting within the installation location and reflection on products with different surfaces (flat and curved).
While we do our best to ensure consistency between batches and use strict colour toning and matching quality procedures to lessen variations, we acknowledge that there may be minor variations between batches. We encourage you to check over your items once received to ensure that you are satisfied with the finish. Should you receive anything of concern, our team is here to help!
| PRODUCT DESCRIPTION | RESIDENTIAL WARRANTY | NON-RESIDENTIAL WARRANTY | OUTDOOR WARRANTY | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Name & Finish | SKU | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other |
| Elysian Shower Top Diverter - White | 14533 | 25 | 2 | 7 | 2 | 10 | 1 | 5 | 1 | - | - | - | - |
| Description | Valve Rates | ||||||
|---|---|---|---|---|---|---|---|
| Product | Parts Used Where Applicable | Min Bar | 0.5 Bar | 1.0 Bar | 2.0 Bar | 3.0 Bar | |
| Elysian Shower Top Diverter - White - 250mm Round Overhead | In wall Diverter Valve | 1.0 | 5.7 | 7.63 | 10.38 | 12.65 | Elysian Shower Top Diverter - White - Rounded Rectangle Hand Shower | In wall Diverter Valve | 1.0 | 3.62 | 4.89 | 6.86 | 8.51 | Elysian Shower Top Diverter - White - 3-Function Round Hand Shower | In wall Diverter Valve | 0.5 | 2.94 | 4.05 | 5.69 | 7.29 |
Product FAQs
What type of coating is used on this product, is it durable?
White - Semi-Gloss PrimeShield Lacquer Technology (PSLT) - This is an extremely durable coating, far superior to a powdercoated coating.
Can this product be used externally / outside?
ABI's warranty does not cover external use due to the coatings being put under much harsher conditions and UV light. However the structural integirty of the tap would be fine.
