Product Details

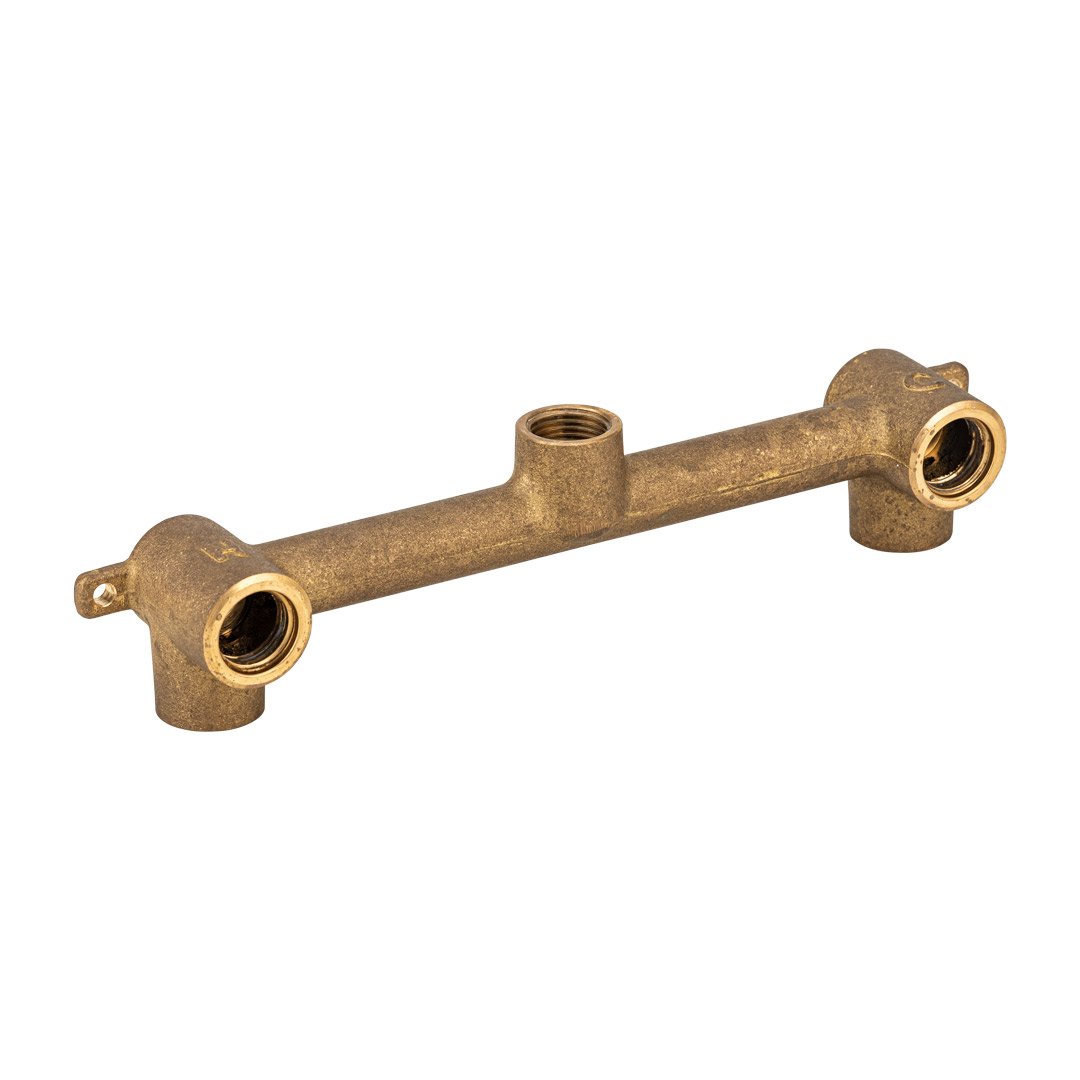

The In-Wall Shower Breech is required in the rough-in stage of your build. This product is a shower breech; therefore, it is only suitable for your shower.
Please note: ABI assembly taps require an in-wall breech as they are sold separately and are dependent on the specifics of your project.
Features:
– Solid Brass Construction
Dimensions:
– Handle Separation 200mm (middle outlet facing up)
– ½ inlet connection
– ½ outlet connection
– ½ spindle connection
Product Info
| SKU | 13943 |
| Weight | 1kg |
| Brand | ABI Interiors |
| Construction | Solid Brass |
| Warranty | 25 Years Structural Warranty |
| Features | Durable construction |

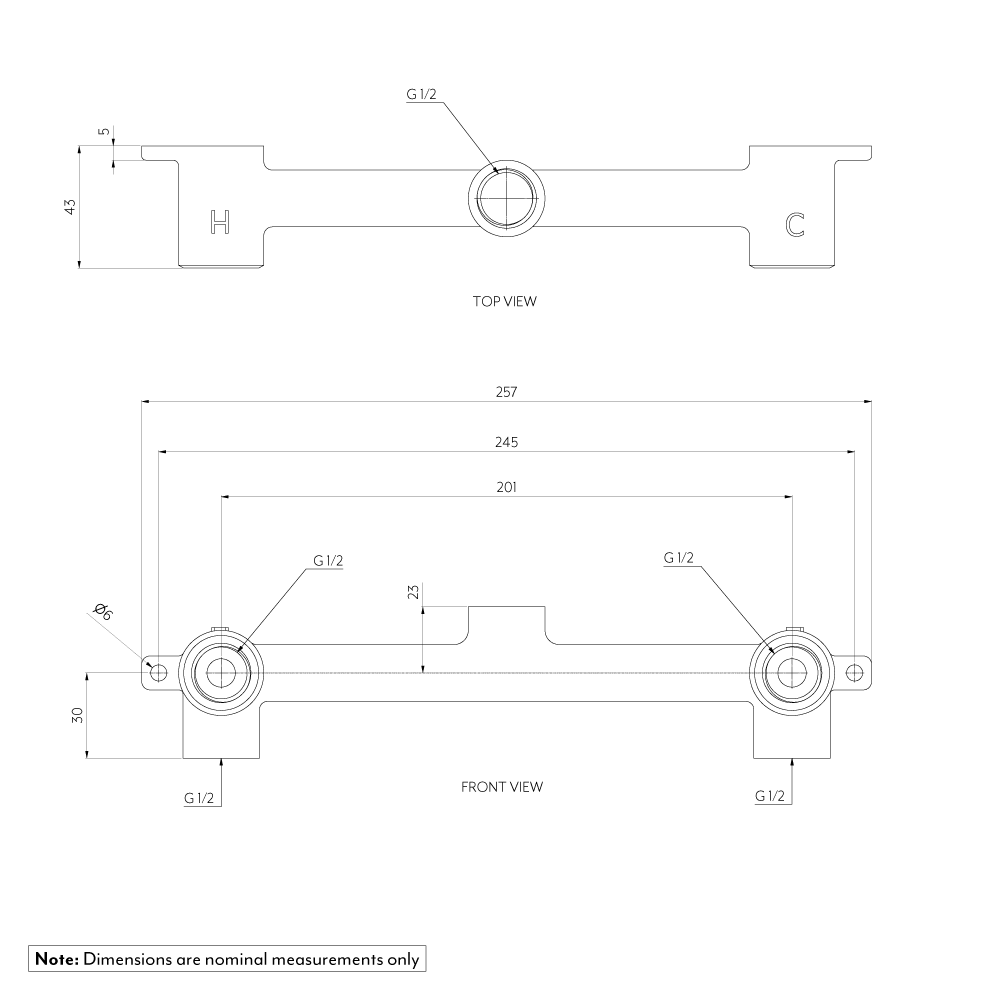

| Dimensions | Vertical version: - 260mm wide x 55mm high x 43mm deep - 200mm handle separation Horizontal version: - 260mm wide x 45mm high x 43mm deep - 200mm handle seperation |
| What's In The Box | Breech Body |
| ETA |
Specification guides can be found under the Downloads tab.
| PRODUCT DESCRIPTION | RESIDENTIAL WARRANTY | NON-RESIDENTIAL WARRANTY | OUTDOOR WARRANTY | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Name & Finish | SKU | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other |
| In-Wall Shower Breech | - | - | - | - | - | - | - | - | - | - | - | - |
Product Documents
| In-Wall Shower Breech - Specification |  |
Bim Files
| View Library | |
