Elysian 4-in-1 Boiling Water Tap - Brushed Copper
SKU: 17452
Free Delivery on Orders Over £500!
Elysian 4-in-1 Boiling Water Tap - Brushed Copper
SKU: 17452
Free Delivery on Orders Over £500!
Colour: Brushed Copper
Optional Add Ons...
£149.99
3 Stage Undersink Water Filter System
Product Details
The convenience of having instant access to clean, safe, filtered water cannot be overstated. The 3-Stage Undersink Water Filter System conveniently and comprehensively cleans the water before it is dispersed from your tap.
Please Note:
– This product is compatible with water pressure between a 2 bar minimum and 5 bar maximum.
– Replacement filters for the 3 Stage Filter can be purchased here.
The 3-Stage Filter is comprised of three different filter systems:
Carbon Filter
Made from carbon block, this 5 micron carbon filter removes chlorine, absorbs harmful organic chemicals, and improves the taste of drinking water.
Uf Membrane Filter
This 0.2 micron UF membrane filter removes water contaminants such as waterborne microorganisms, harmful organic chemicals, and more.
Sediment Filter
This 1 micron sediment filter reduces sediment particles, such as sand, silt, dirt, and rust from feed water.
Product Details

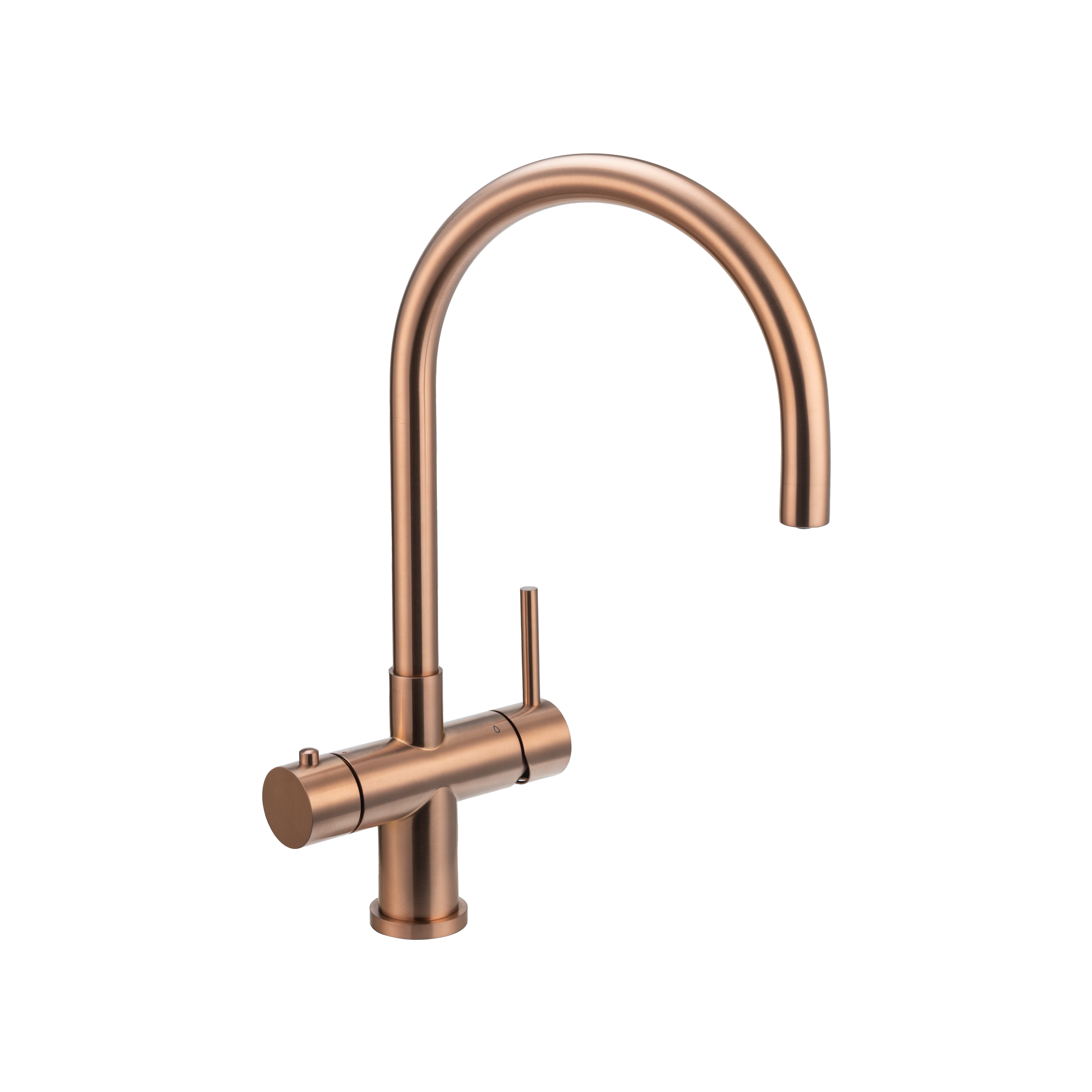

Merging cutting-edge convenience with a sleek design, the Elysian 4-in-1 Kitchen Mixer delivers four essential water functions in one refined fixture. Effortlessly switch between instant boiling, ambient filtered (filter not included), and standard hot and cold water — all from a single, sophisticated tap.
Crafted from premium 304 stainless steel, this versatile mixer streamlines your kitchen routine while maintaining a contemporary aesthetic. Whether preparing meals, filling pots, or making tea in seconds, the Elysian 4-in-1 is designed to elevate both form and function in your space.
Please Note:
– This tap needs sufficient space beneath the benchtop due to the required flexible components
– The Elysian 4-in-1 Boiler Water Tap must be installed by a licensed plumber and in a well-ventilated area.
-A filtration system is not included. If you would like filtered ambient water, you can purchase our 3 Stage Undersink Water Filter System separately.
Features:
– 304 stainless steel construction offers durability for indoor and commercial use.
– ABI HeatShield PVD Electro Colouring System enhances corrosion resistance while being environmentally friendly.
– Safety lock on the boiling water.
– Ergonomic handle for easy operation.
– Swivel spout for efficient functionality.

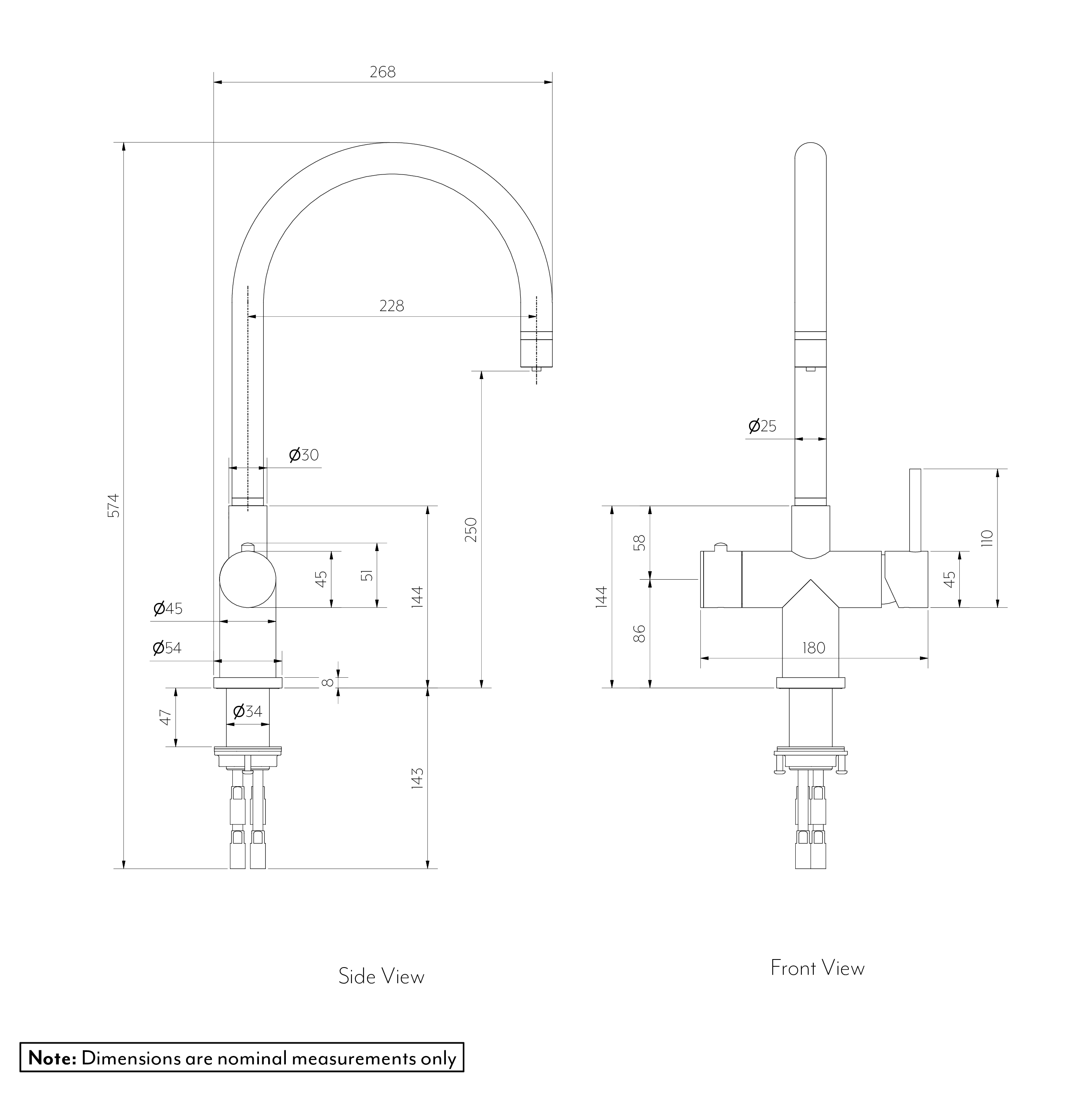

Dimensions:
– Height: 574mm
– Spout Reach: 228mm
– Spout Height: 240m
– Width: 180mm
Product Features
304 Stainless Steel
.svg){kind=icon}
PVD (Physical Vapour Deposition)
360 Degree Swivel Spout
Material
Construction
304 Stainless Steel
Finish/Coating
Brushed - ABI's Heat Shield – Industrial Grade PVD Electro Colouring System
*We implement strict quality procedures to minimise colour variations, however we acknowledge that there may be minor differences between batches. We encourage you to check over your items once received to ensure that you are satisfied with the finish. Should you receive anything of concern, our team is here to help!
For more information on our finish quality
Specifications
| SKU | 17452 |
| Weight | 10.65kg |
| ETA | |
| Brand | ABI Interiors |
| Finish/Coating | Brushed - ABI's Heat Shield – Industrial Grade PVD Electro Colouring System |
| Construction | 304 Stainless Steel |
| Dimensions (mm) | Height: 574mm Width: 180mm Reach: 228mm |
| Function | Swivel Spout |
| Filtration | Filtration System Not Included |
| Whats In The Box | Box 1: 1x Elysian 4-in-1 Kitchen Mixer 1x Flexi Hose (Boiling Water) 1x G1/2 Tee Connector 2x G1/2 to Fridge hose Connection 3x Flexi Hoses (Male End) Box 2: 1x Boiler unit 1x Relief Hose 1x Flexi Hoses (Standard) 1x Pressure Relief Valve 1x Metal Threaded Connector |

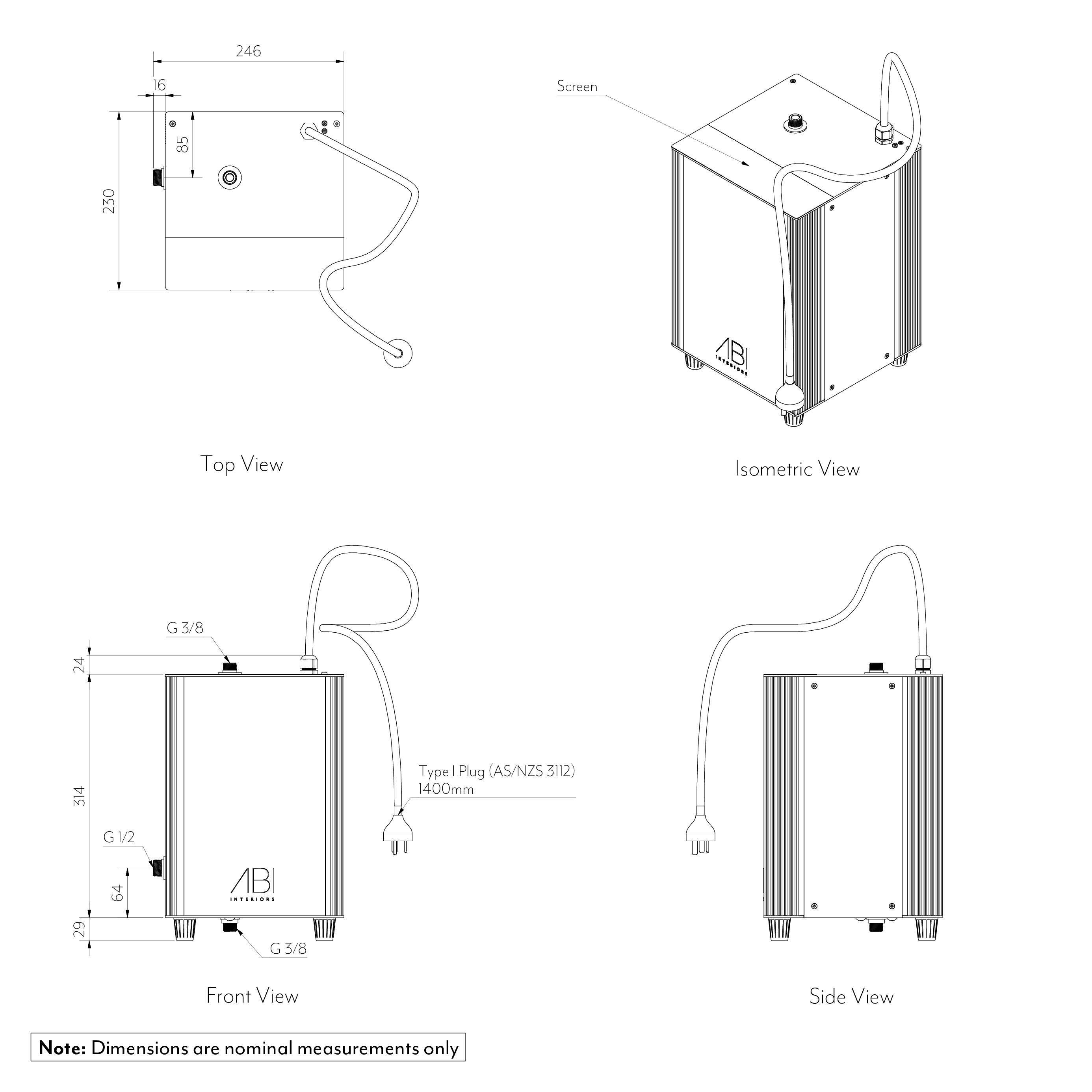

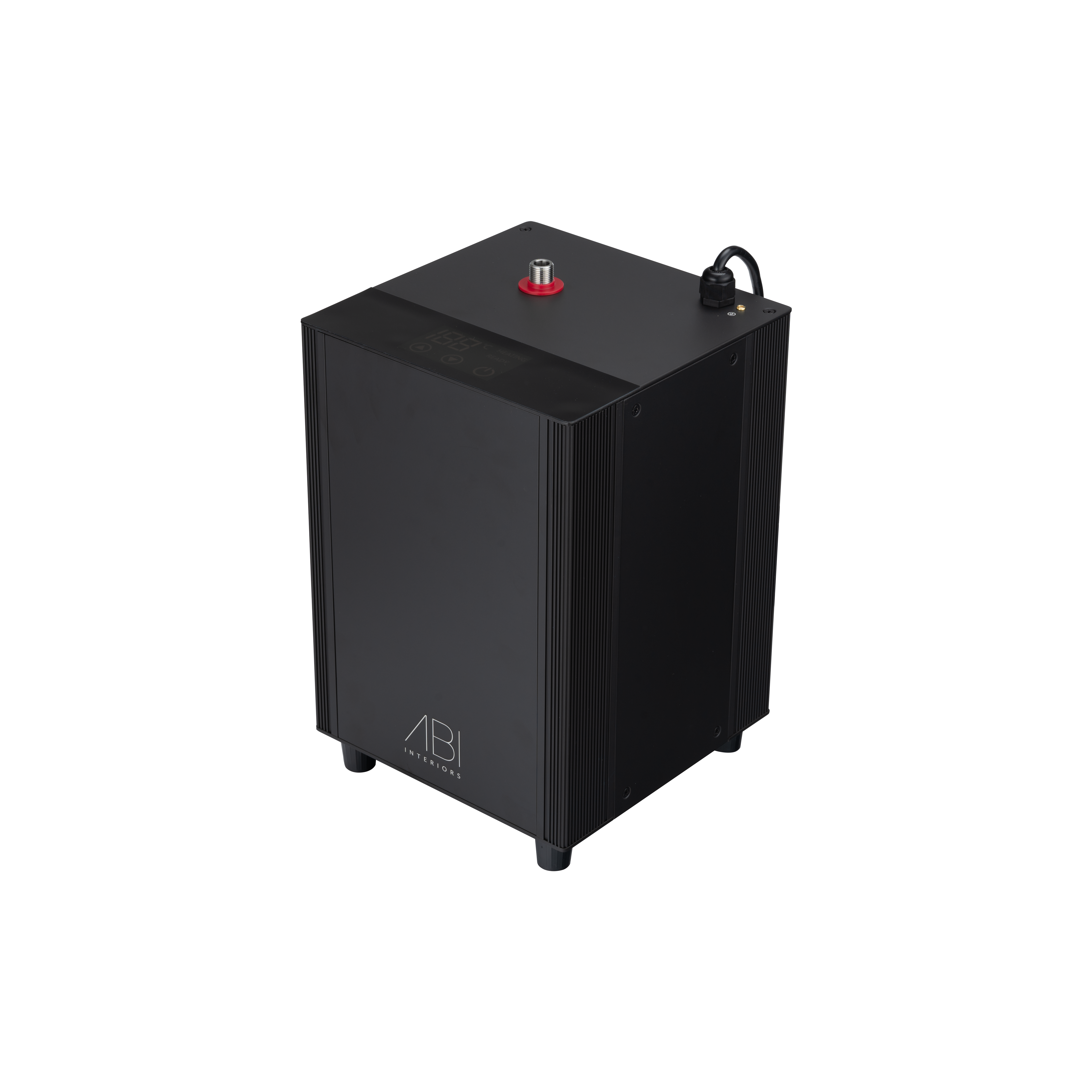

| Boiler Function | -Capacity 3.5L -Rated Voltage: 220-240V -Rated Frequency 50Hz -Rated Power 1700W -Temperature Range 40-98˚C -Power Consumption 0.89KWh/24H -Internal Construction: Stainless Steel |
Specification guides can be found under the Downloads tab.
Downloads
Product Documents
| Elysian 4-in-1 Boiling Water Tap - Specification |  |
Bim Files
| View Product |  |
| View Collection | |
| View Library | |
Brushed Copper
At ABI, we use the highest quality materials and colouring processes to ensure a durable and timeless finish that you will love for years to come. Like many other materials, the colour may appear differently from product to product due to lighting within the installation location and reflection on products with different surfaces (flat and curved).
While we do our best to ensure consistency between batches and use strict colour toning and matching quality procedures to lessen variations, we acknowledge that there may be minor variations between batches. We encourage you to check over your items once received to ensure that you are satisfied with the finish. Should you receive anything of concern, our team is here to help!
| PRODUCT DESCRIPTION | RESIDENTIAL WARRANTY | NON-RESIDENTIAL WARRANTY | OUTDOOR WARRANTY | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Name & Finish | SKU | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other |
| Elysian 4-in-1 Boiling Water Tap - Brushed Copper | 17452 | 25 | 5 | 7 | 2 | 10 | 1 | 5 | 1 | - | - | - | - |
Product FAQs
What is the hole size for the benchtop?
ABI recommends drilling a 35mm hole in the benchtop
How does the Boiler tap turn on?
The Boiler mixer is located on the left hand side and can be turned on by pushing the safety button down and rotating the mixer backward in the same motion.
What Temperature is the boiling water?
The temperature can be adjusted from approximately 25°C to 98°C. To adjust the water temperature, press the < and > arrows on the control panel.
